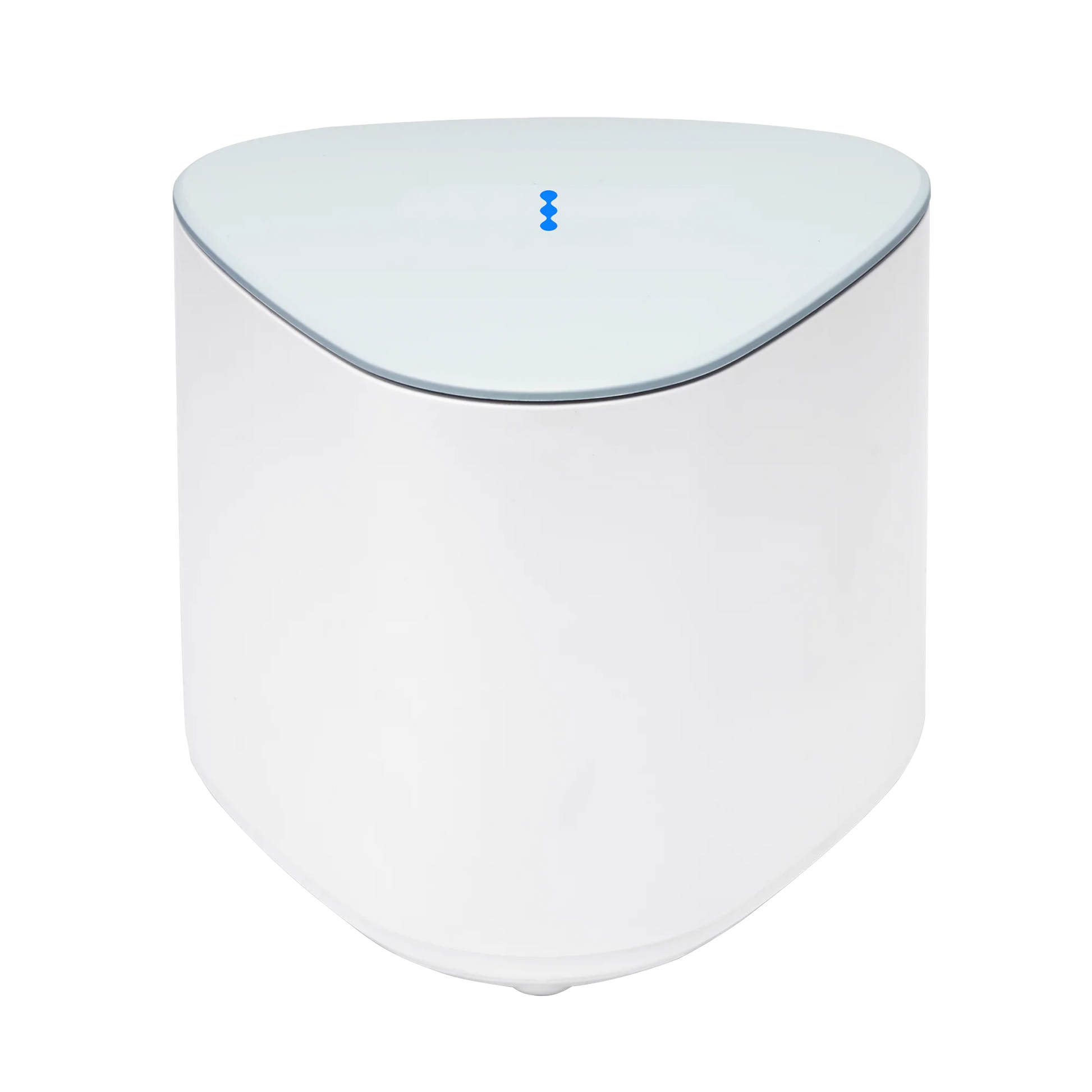

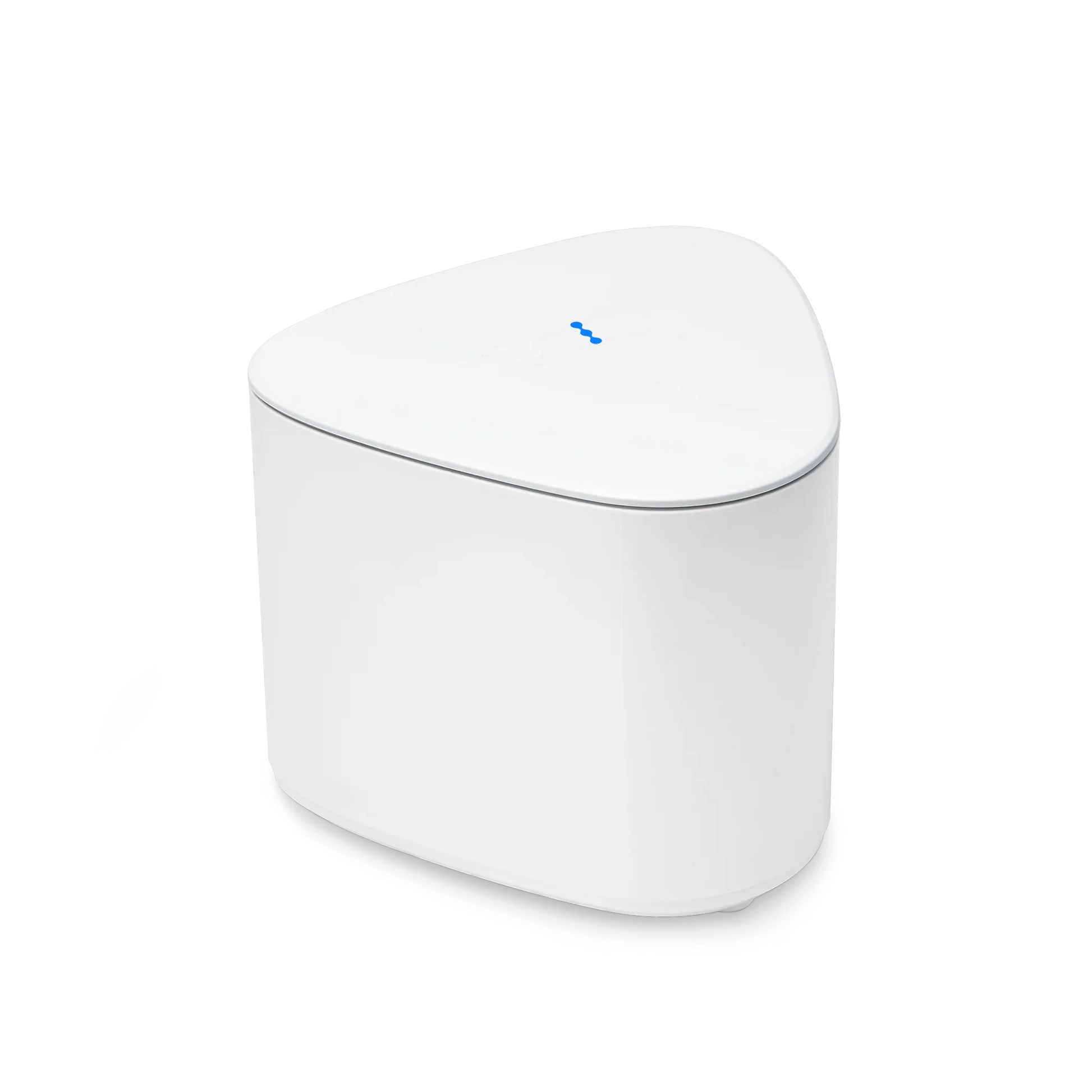

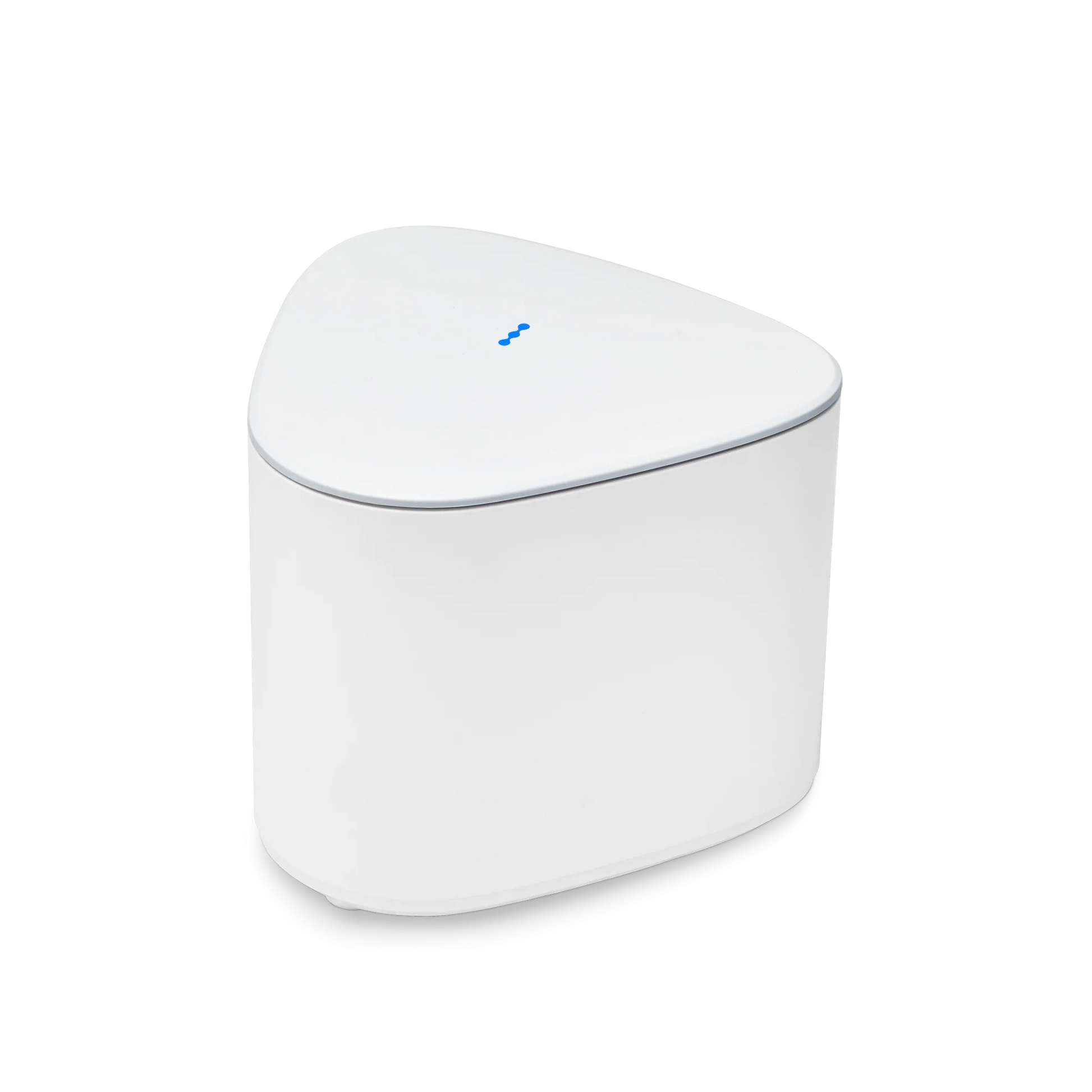

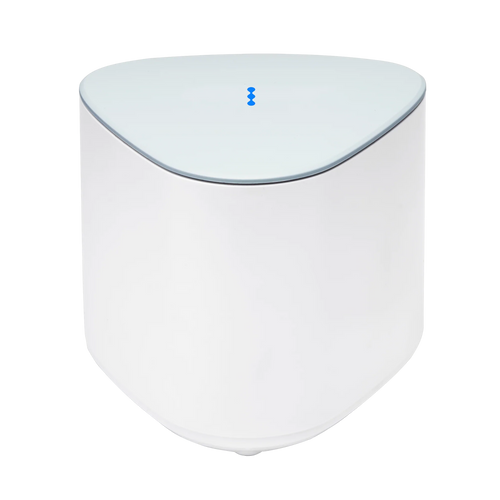

Xtend Pro

Whole Home Mesh Wi-Fi System



Design Your Own Home Wi-Fi System

The PROLiNK Xtend Pro allows you to customize your own Wi-Fi system to your needs. Don’t be limited by the house layout or LAN point locations; scale and expand your Wi-Fi coverage to suit your preferences.

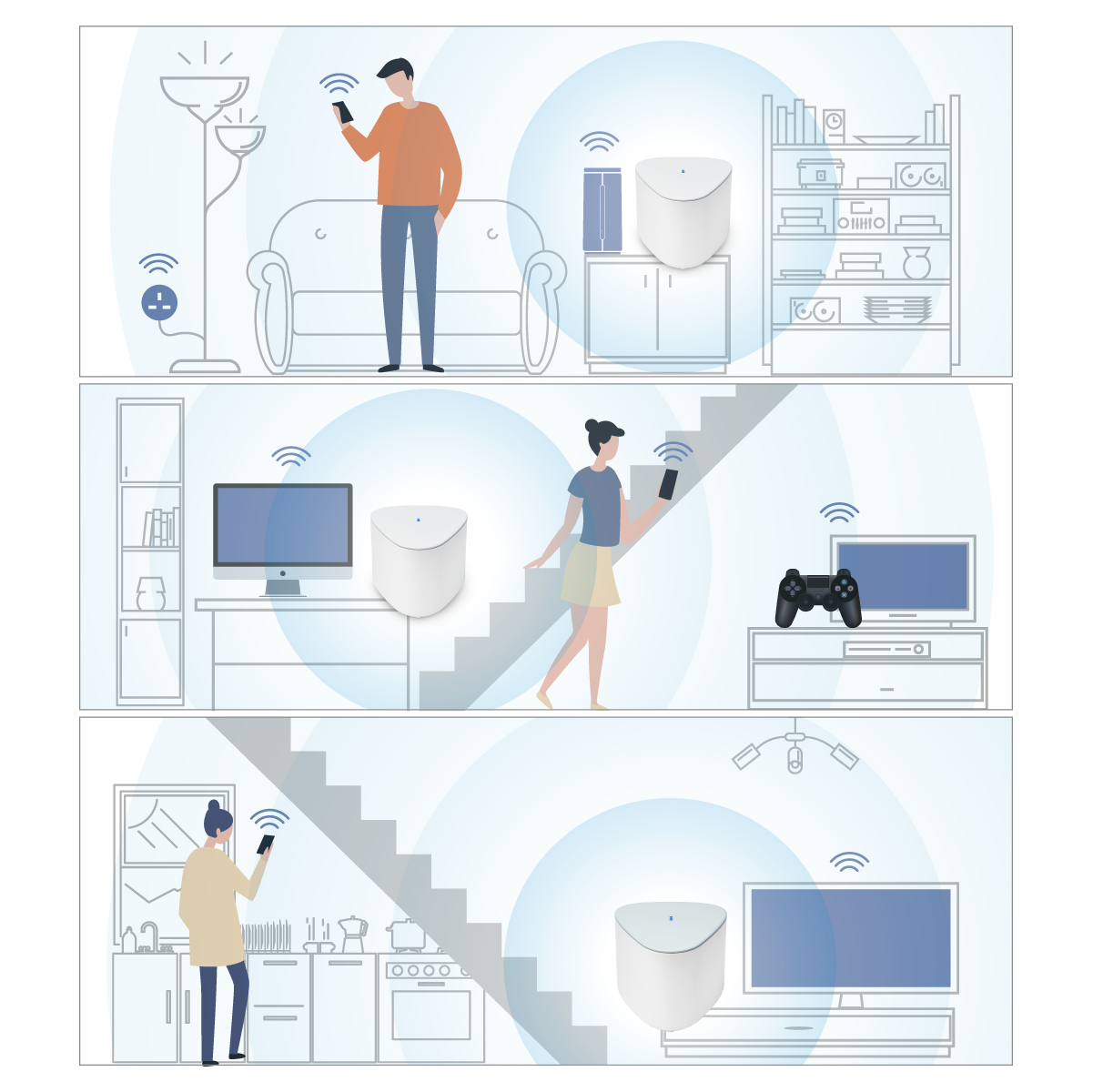

Seamless Roaming

Move around in the house without having to experience disconnection or go through the hassle of manually switching to another Wi-Fi source.


Eliminate weak Wi-Fi signal areas and safe the hassle of having to search or be limited to strong Wi-Fi signal spots.

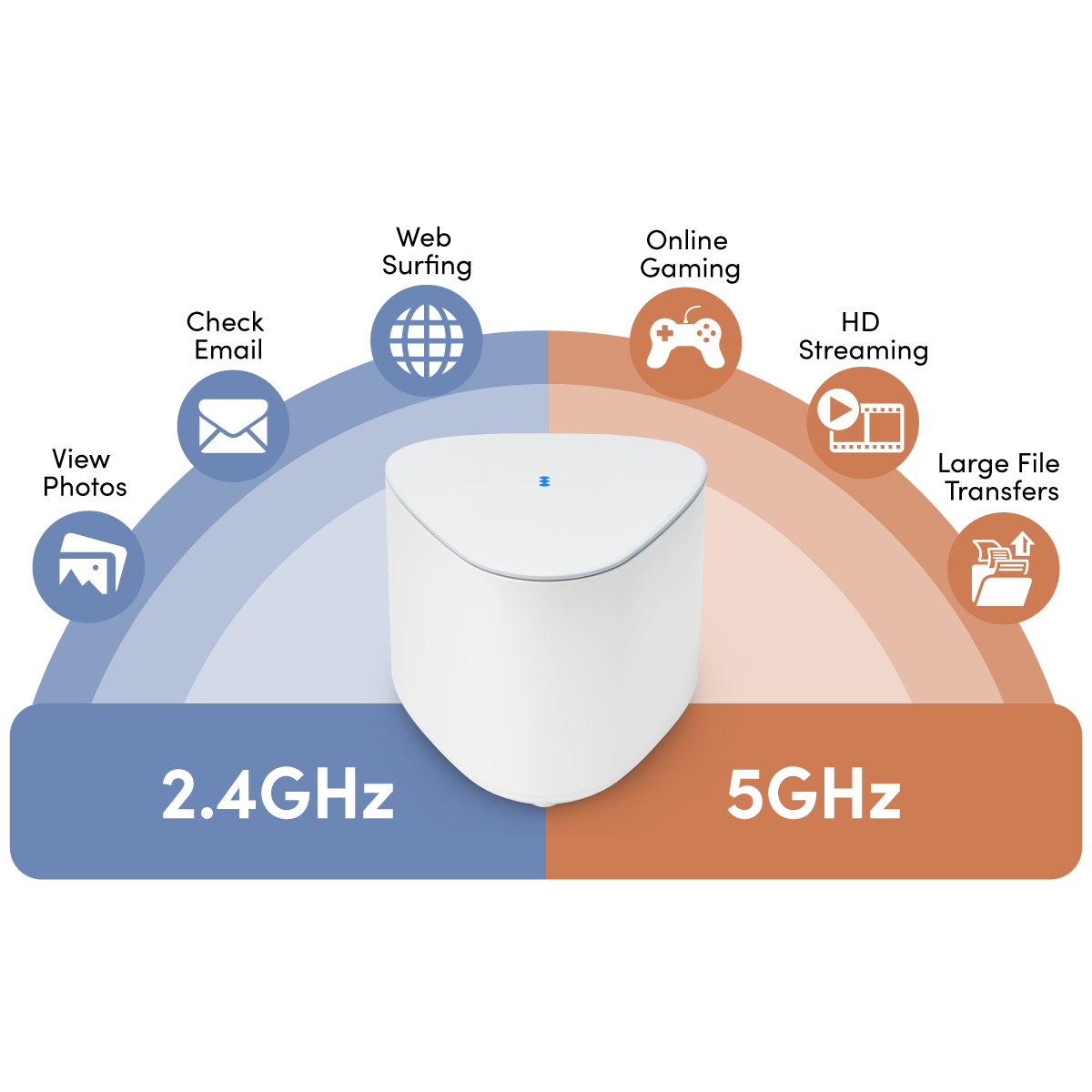

Auto-prioritize dual-band capable clients to a less crowded Wi-Fi network to ease congested networks.

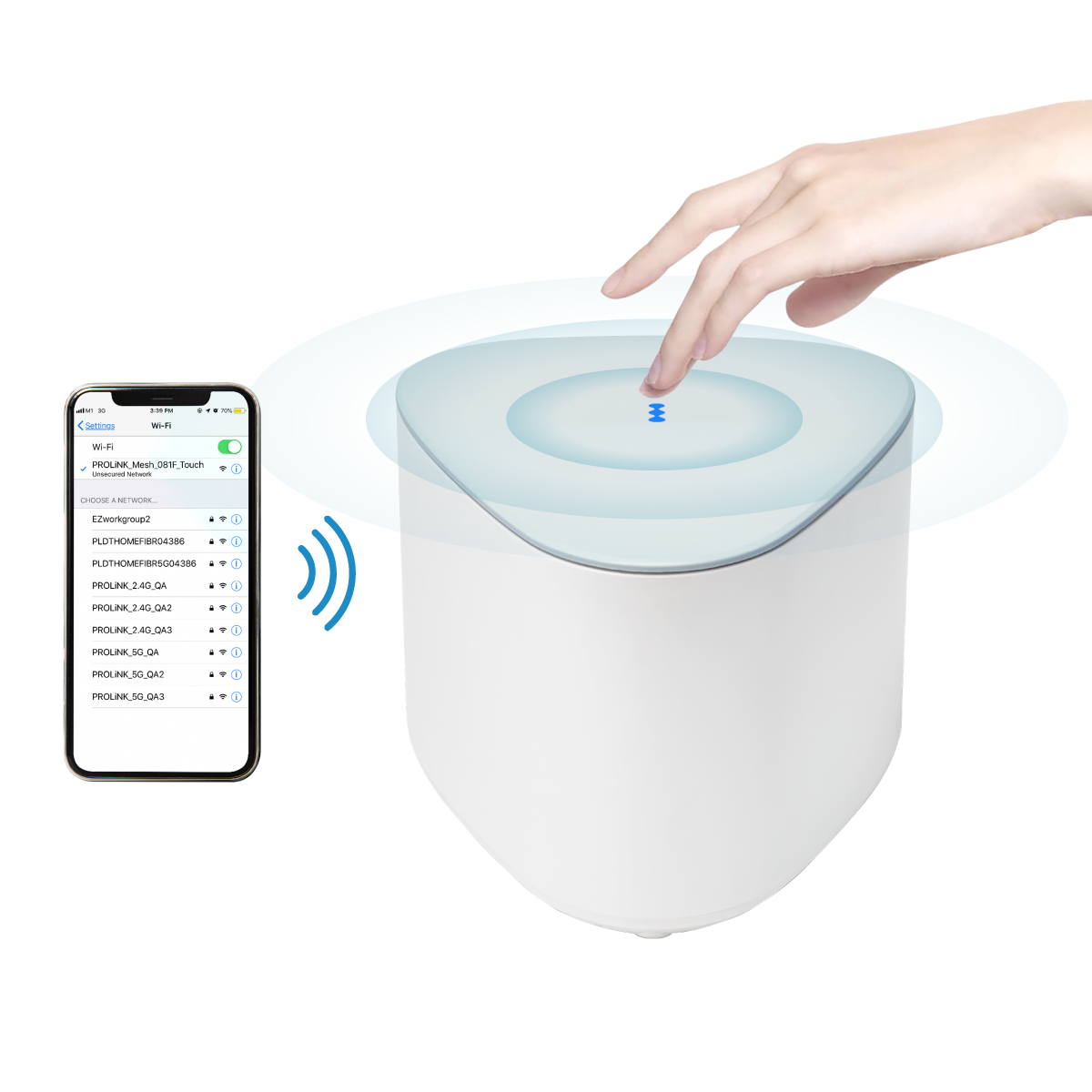

Share your Wi-Fi with just a simple touch and hold on your Xtend Pro. Can’t get anymore convenient than this!


Manage your Whole Home Mesh WiFi System at your fingertips. You can check your Wi-Fi status, create and manage your guests networks, connect to your smart home devices and many more.

Technical specifications

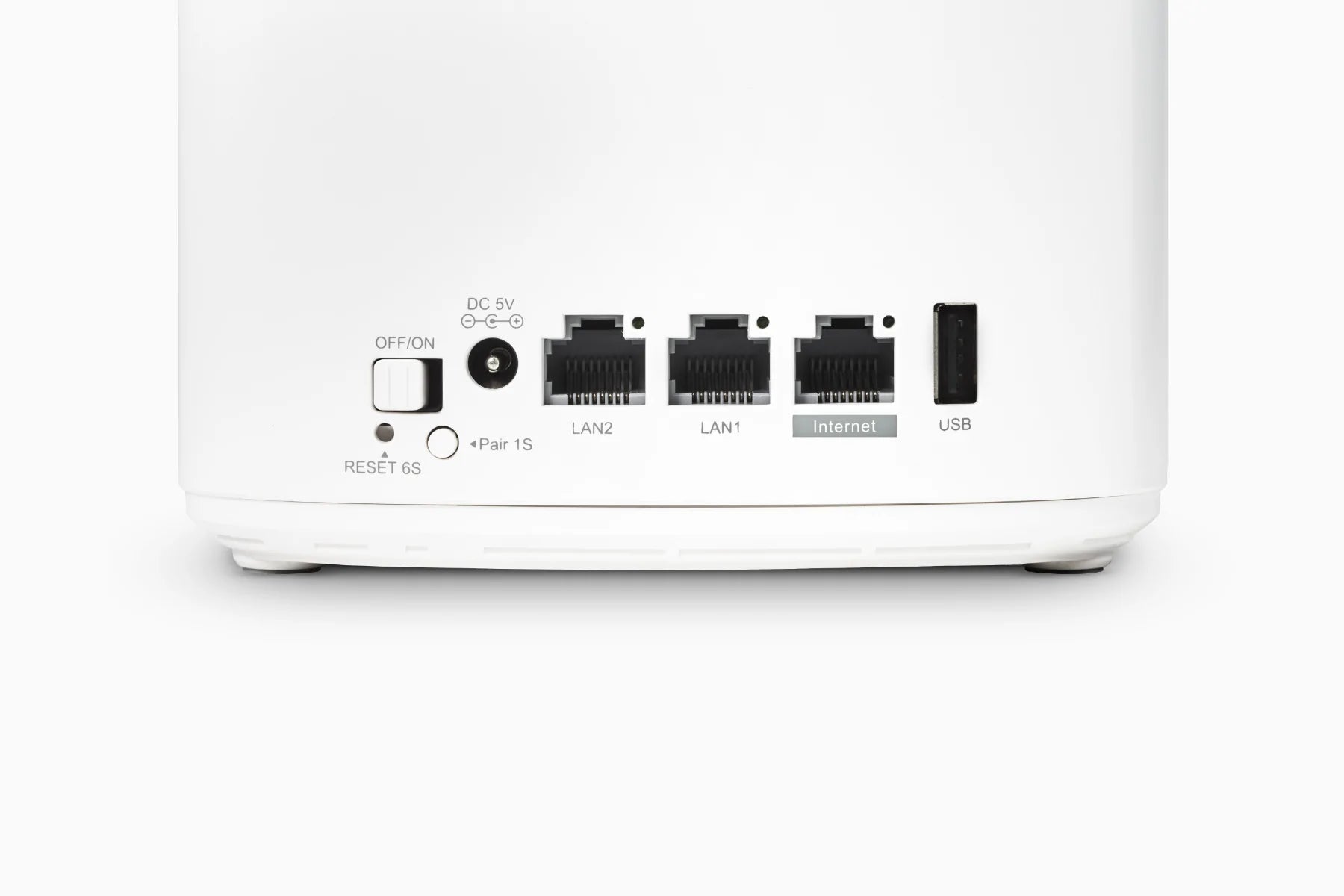

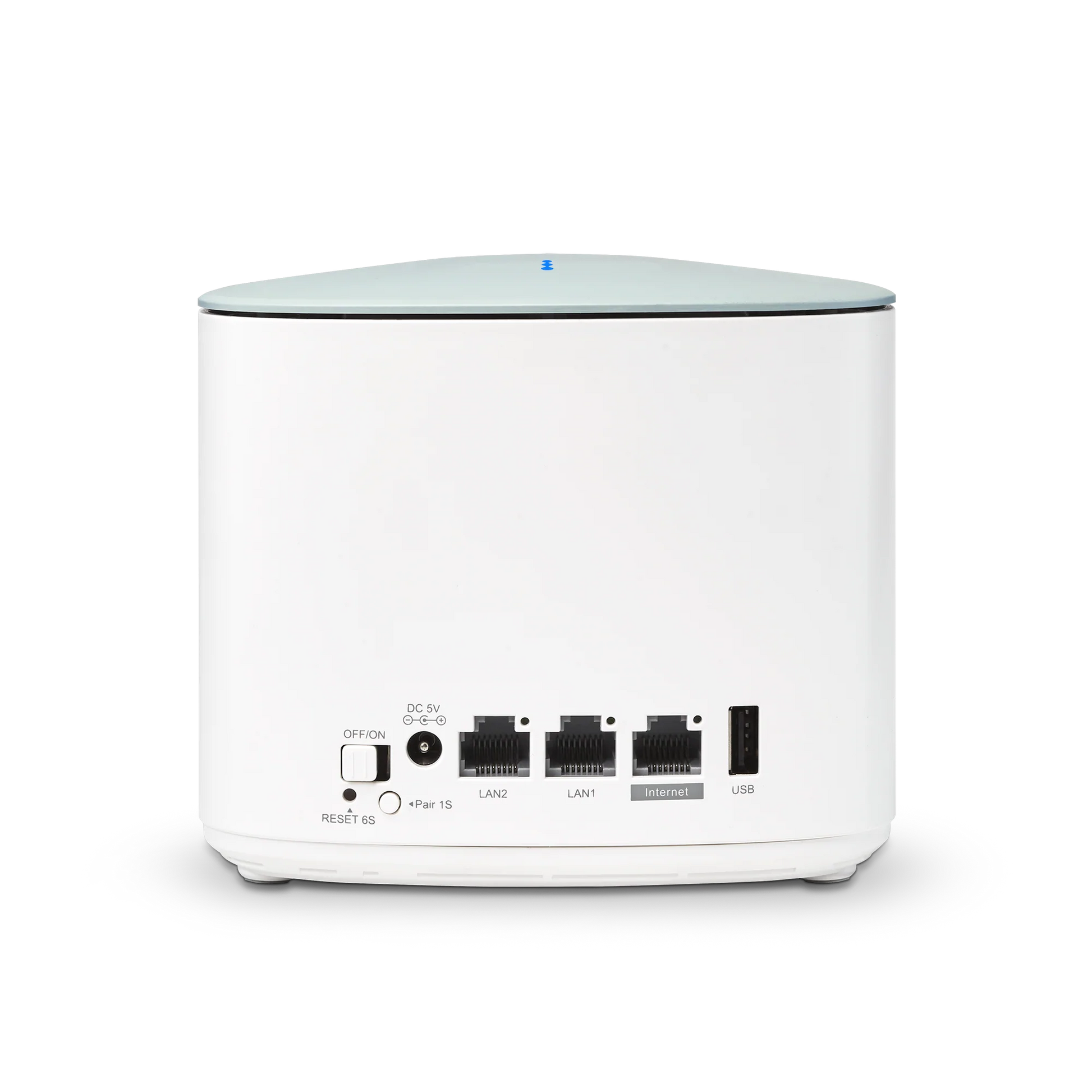

Interface 1x 10/100/1000Mbps WAN/LAN port

2x 10/100/1000Mbps LAN port

1x USB port

Button 1x Power On/Off Switch

1x Reset to factory default button

1x Pairing button

1x Touch sensor

LED 1x Dynamic lighting status indicator
Power Supply DC 5V 3A
Rated Voltage/Frequency Input: 100 – 240 VAC, 50/60Hz


Wireless Output Power 2.4GHz: up to 20dBm

5GHz: up to 23dBm

Wireless Channels / frequency 2.4GHz: Channel 1 ~ 13 (2412 ~ 2472 MHz)

5GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165 (5180 ~ 5240 and 5745 ~ 5825 MHz)

Wireless Channel Bandwidth 2.4GHz: 20/40MHz

5GHz: 20/40/80MHz

Wireless Standards IEEE 802.11b/g/n/a/ac

IEEE 802.11k

IEEE 802.11r

Wireless Frequency Band 2.4GHz Wireless-N

5GHz Wireless-AC

Wireless Link Rate Up to 300Mbps at 2.4GHz Wireless-N

Up to 1733Mbps at 5GHz Wireless-AC

Wireless Antenna 4x 5GHz Omni Directional Antenna (Internal)
2x 2.4GHz Omni Directional Antenna (Internal)
Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK encryption


Prolink will provide security updates for PRC2402M up to 31st Dec 2023, and extended support may be provided after the stated date.


Internet (WAN) Connection
Dynamic IP, Static IP, PPPoE
DHCP Setting Server, Client
Functions DDNS, Port Forwarding, DMZ, NTP
App support Android 5.0 and above, IOS 9.0 and above

Dimension & Weight

Dimension Single Pack

125mm x 134mm x 116mm (L x W x H without packaging)

215 x 149 x 120 mm (L x W x H with Packaging)

Twin Pack

125mm x 134mm x 116mm (L x W x H without packaging)

340 x 149 x 120mm (L x W x H with Packaging)

Weight Single Pack

- 450g (Each Xtend Pro)

- 975g (With packaging)

Twin Pack

- 450g (Each Xtend Pro)

- 1900g (With packaging)

Package Content

Single Pack • 1 x PRC2402M Xtend Pro
• 1 x Power Adapter
• 1 x RJ45 Ethernet Cable
• 1 x Quick Installation Guide
Twin Pack • 2 x PRC2402M Xtend Pro
• 2 x Power Adapter
• 1 x RJ45 Ethernet Cable
• 1 x Quick Installation Guide



Document Date Version
2019-07-26 1.00
2020-07-20 1.20
2020-09-01 1.10
2020-09-15 1.00
2021-07-29 1.0.25
