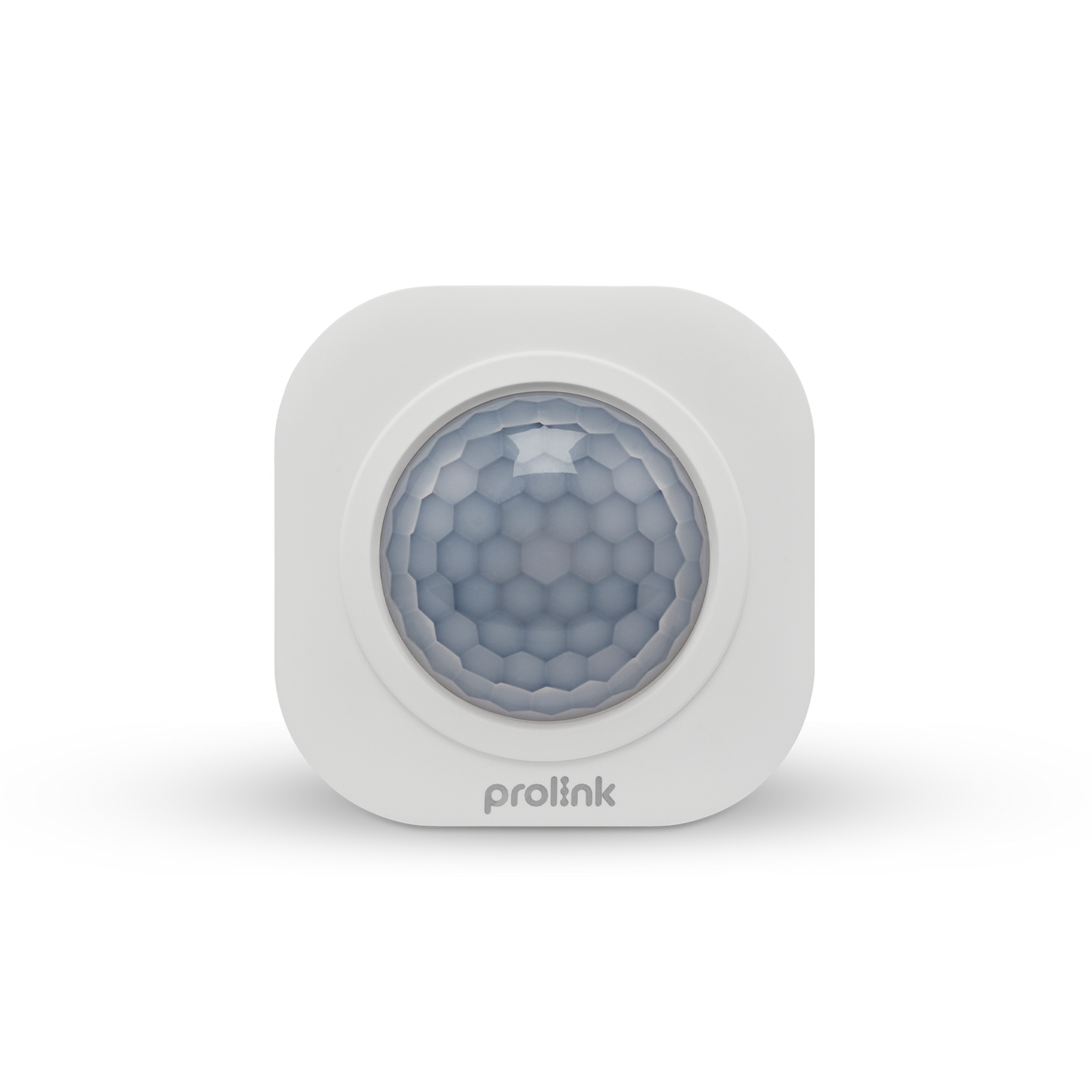

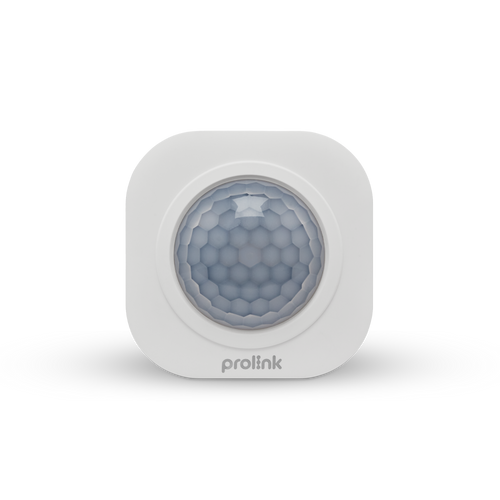

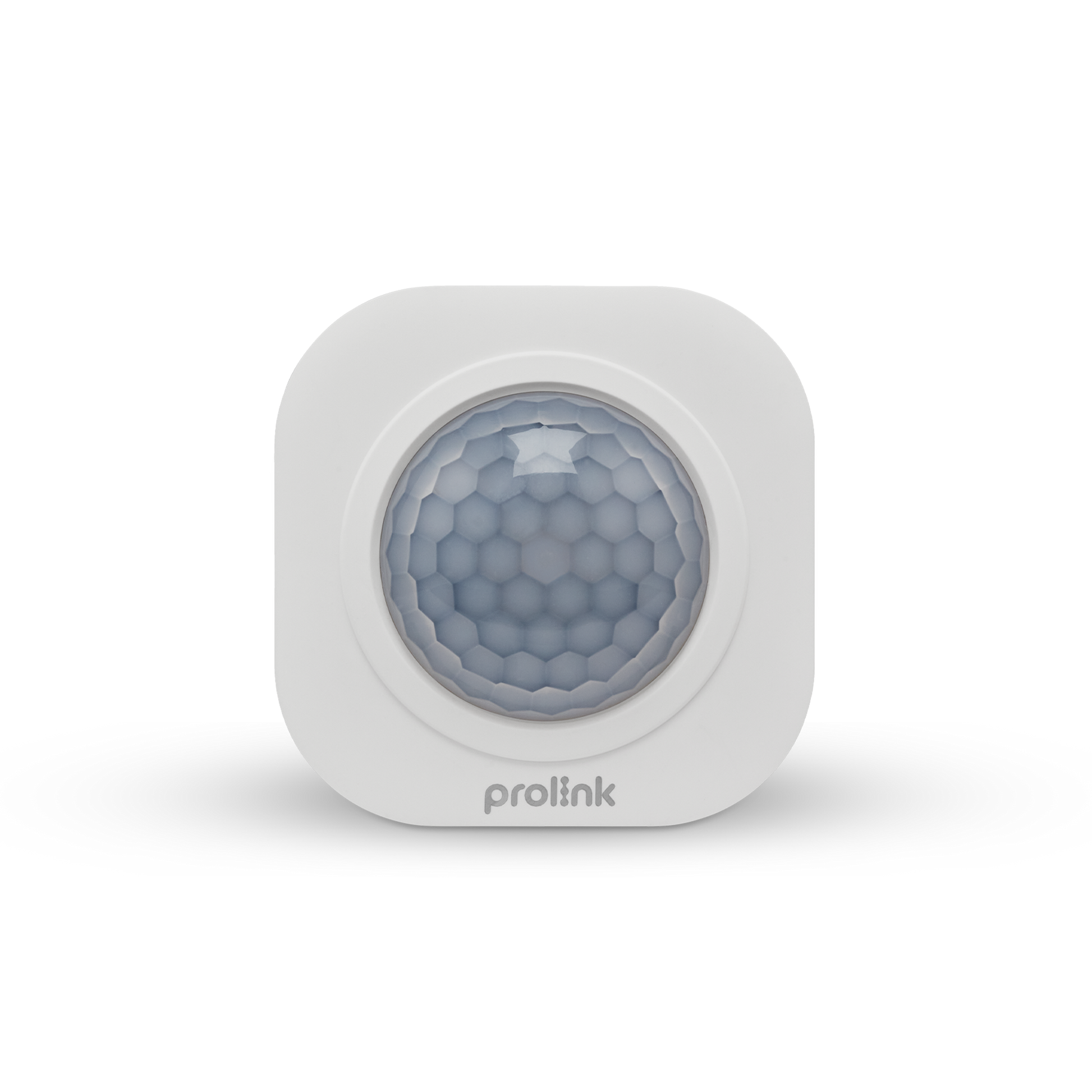

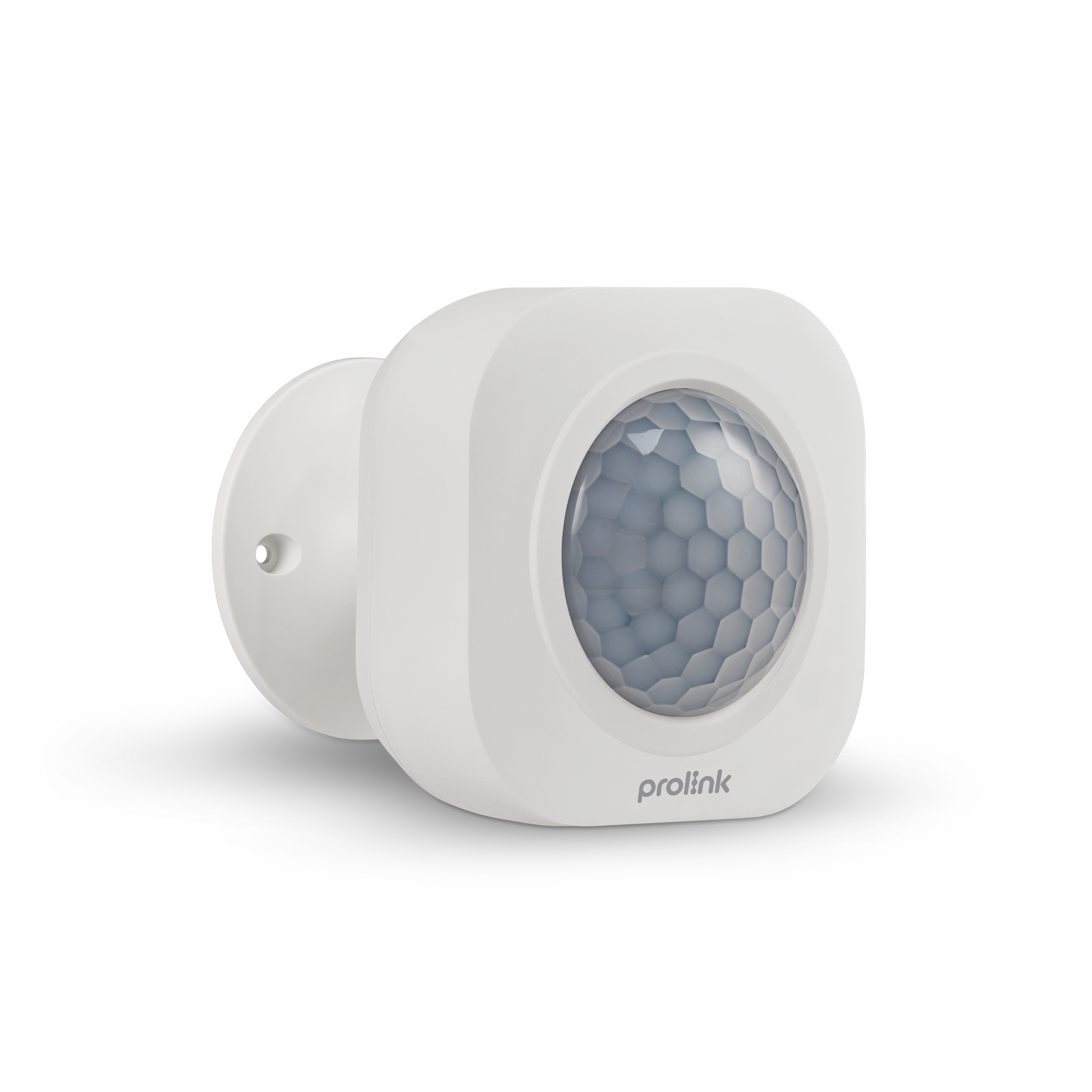

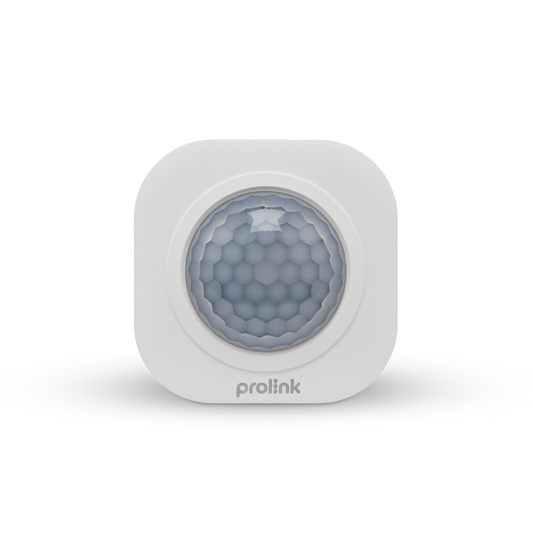

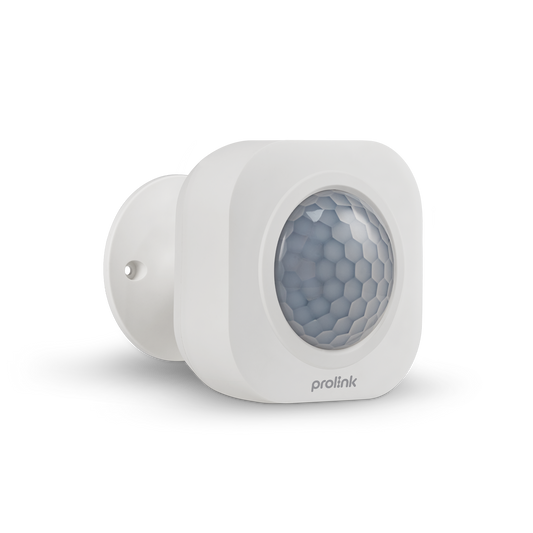

Smart Zigbee PIR Motion Sensor
Smart Zigbee PIR Motion Sensor
DS-3308
Smart Zigbee PIR Motion Sensor
Smart Zigbee PIR Motion Sensor
Monitor your home with DS-3308 Smart Zigbee PIR Motion Sensor. Receive 24/7 alerts on your smartphone anytime when there is unexpected movement.
At a glance

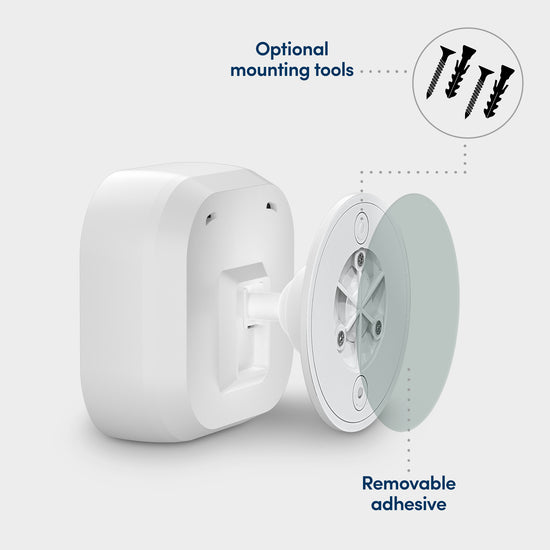

Easy installation
Battery powered
Energy saving
Wide detection range
Real time notifications
Smart Zigbee family

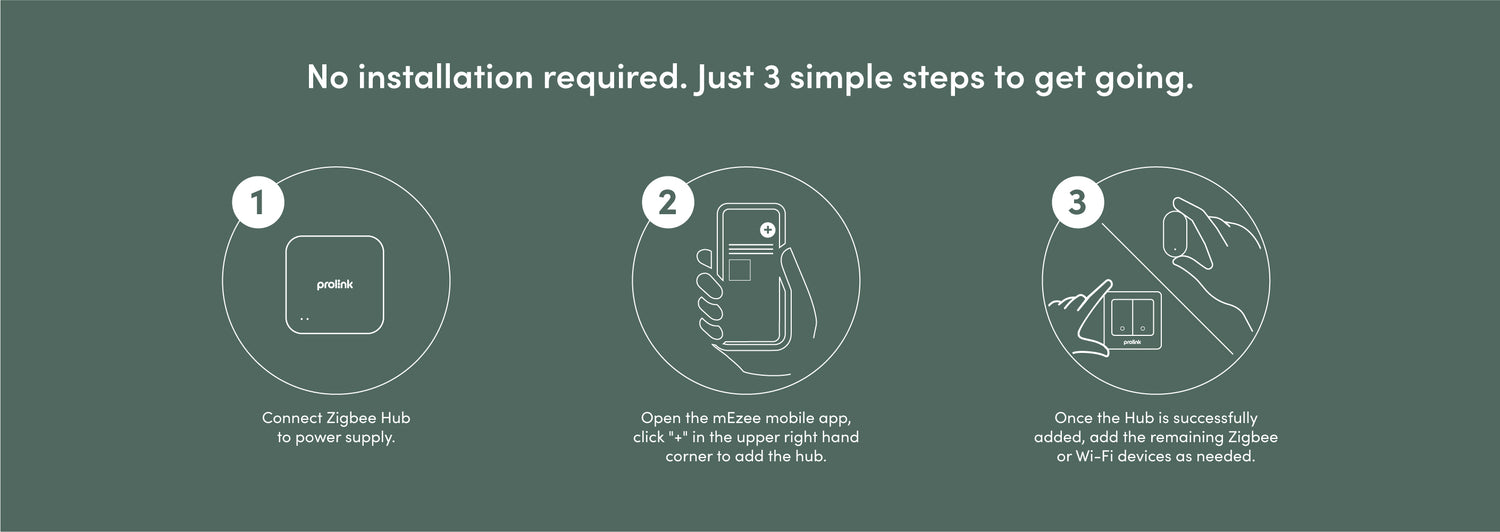

Designed for a Smart Zigbee ecosystem, the Prolink Smart Zigbee PIR Motion Sensor requires a Zigbee hub for centralized control, ensuring seamless communication, enhanced automation, and reliable smart home integration.

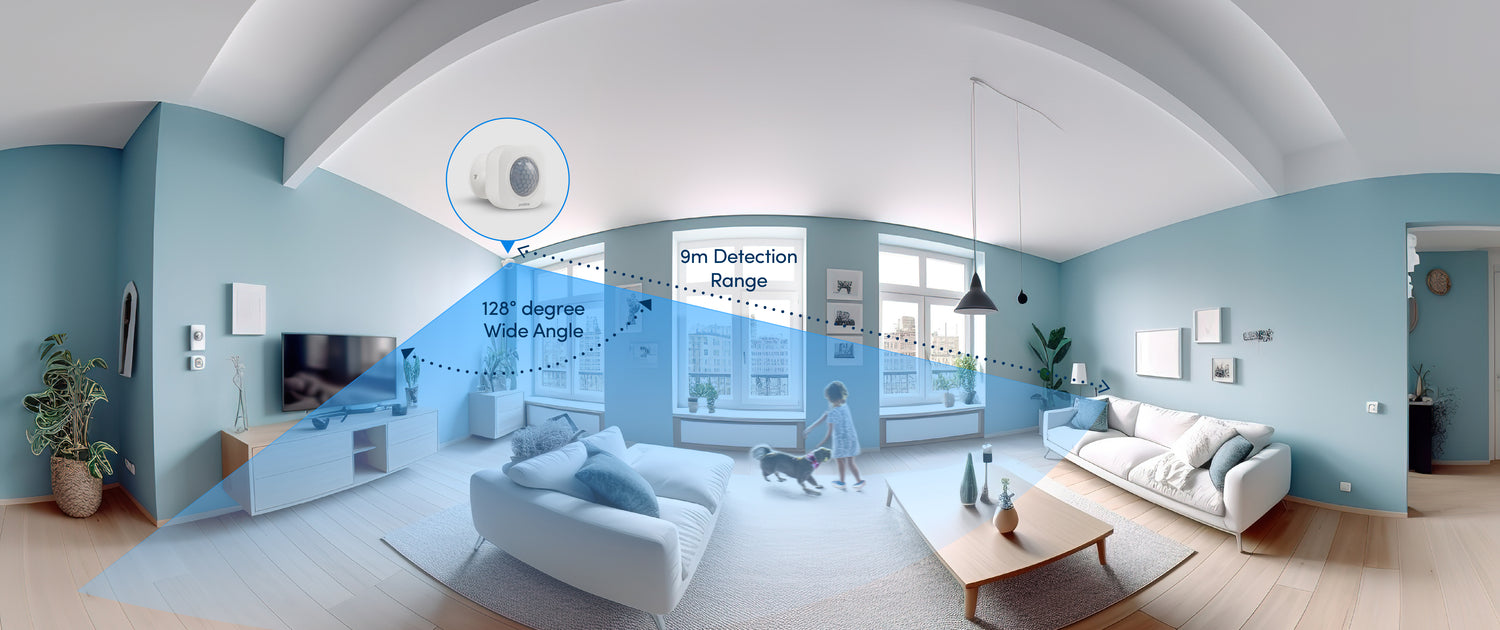

Wide detection range
Captures motion up to 9m away and through 128° detection area.

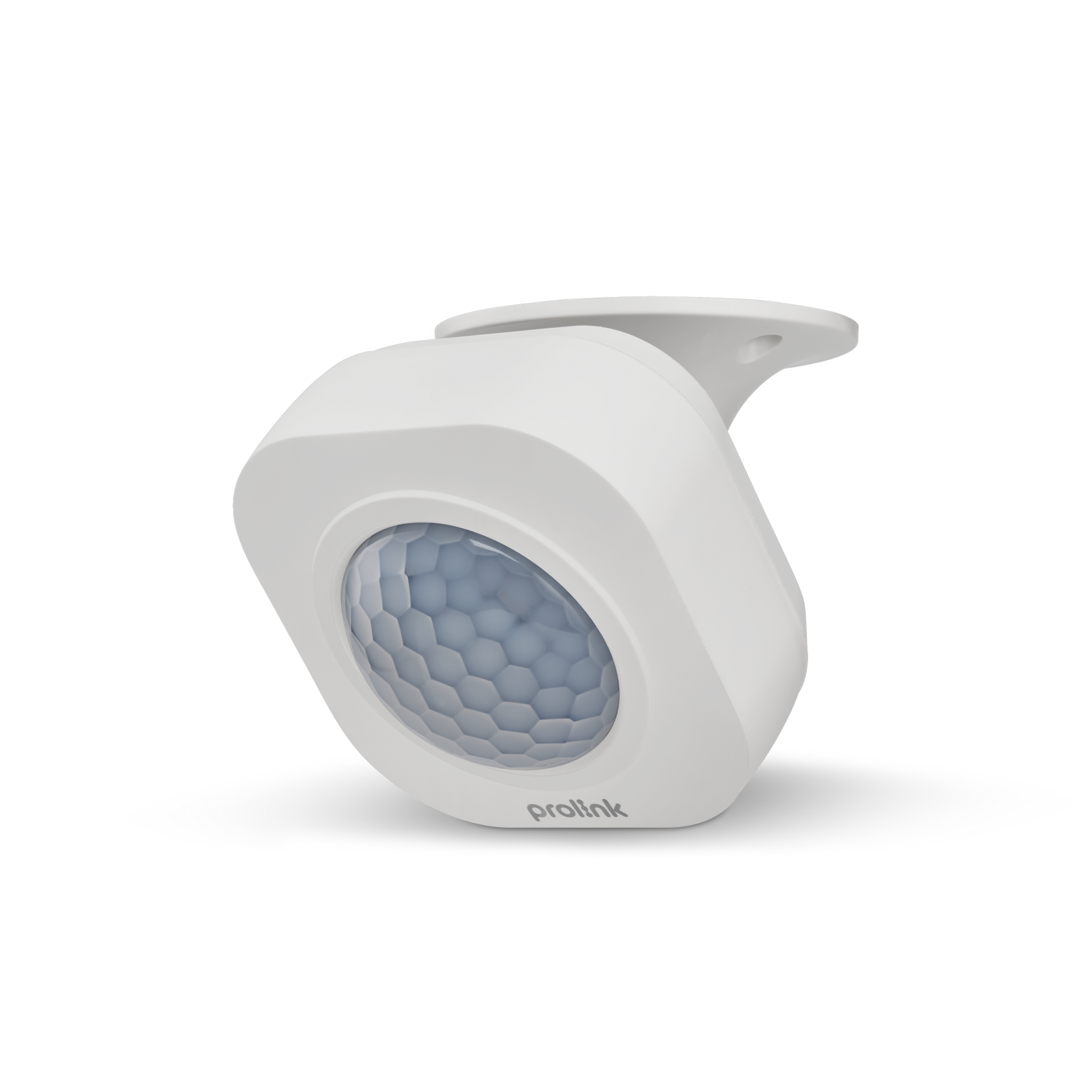

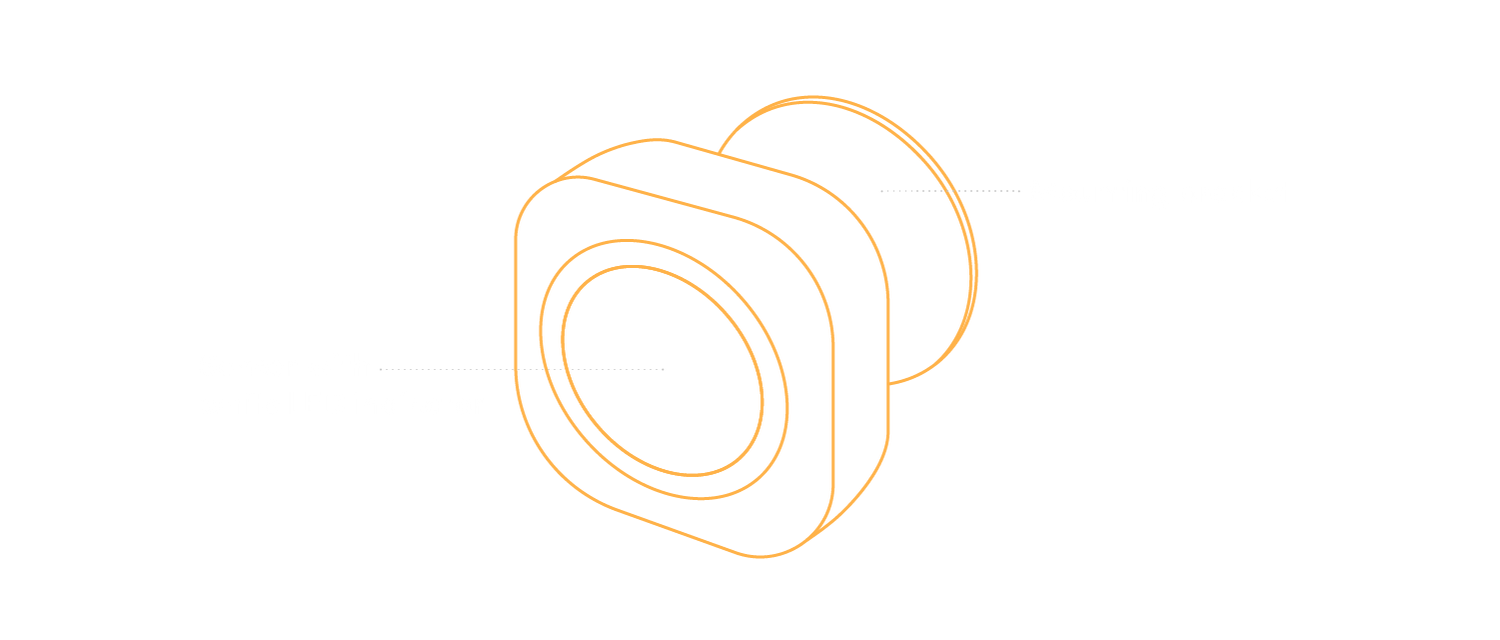

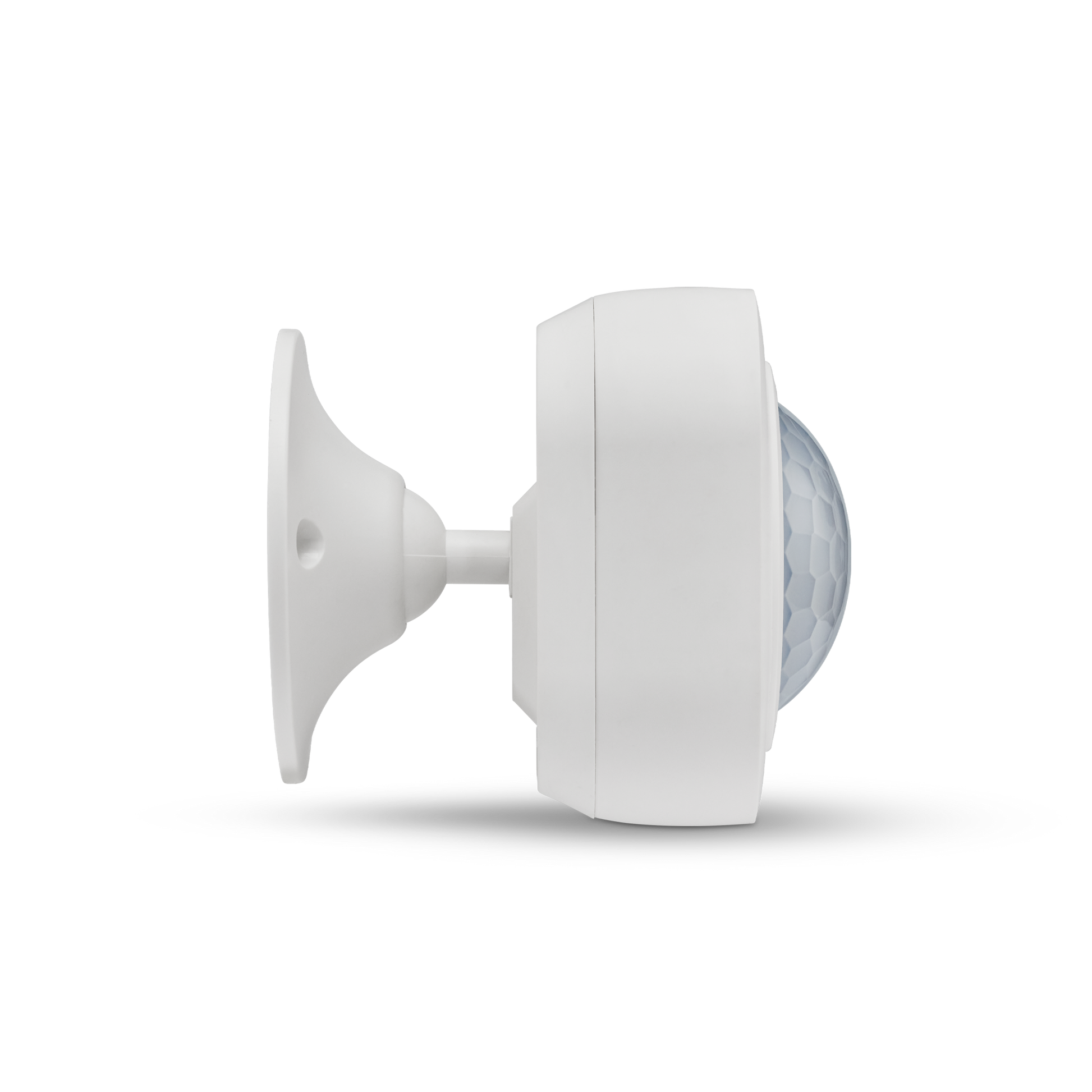

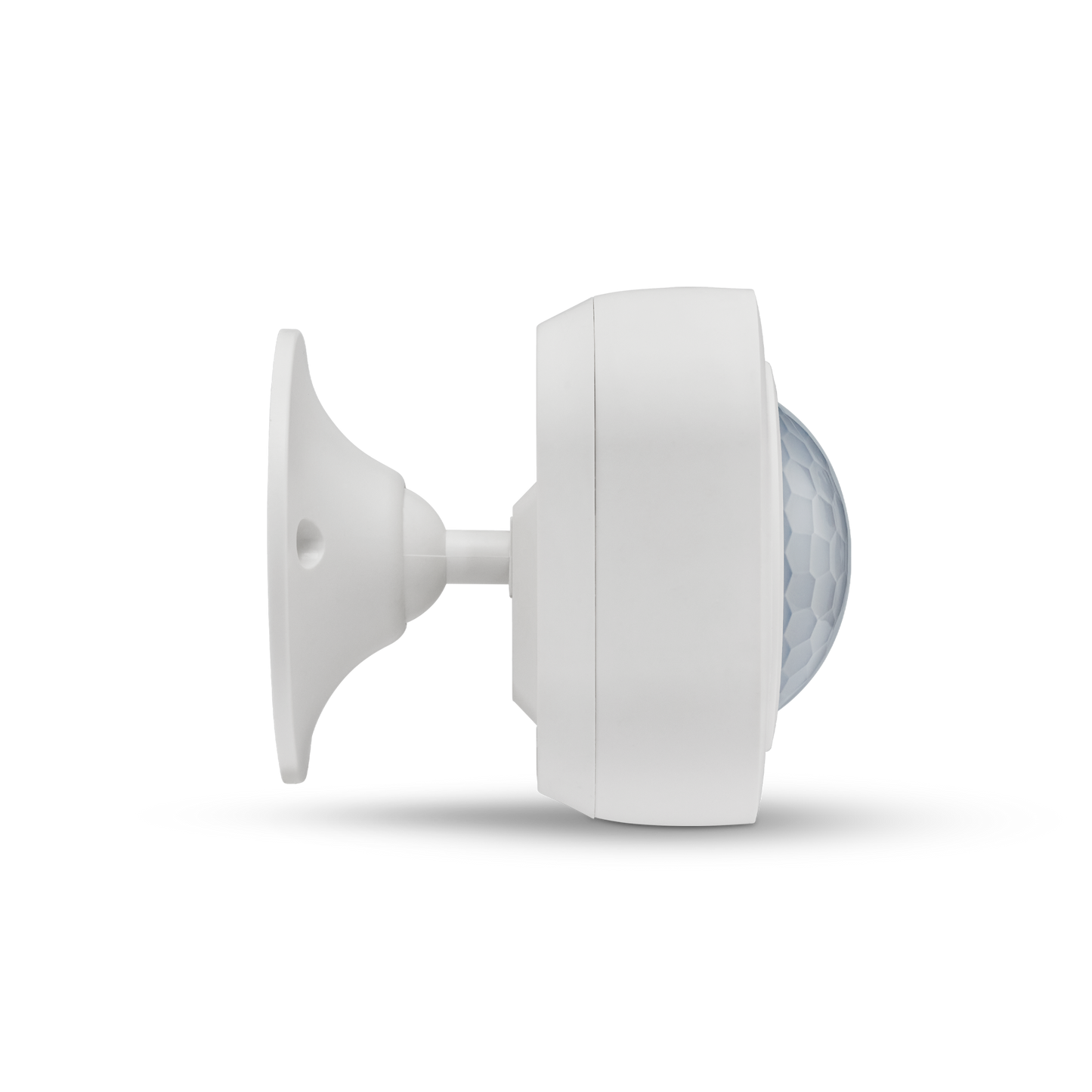

Adjustable viewing angle
An adjustable viewing angle for a motion sensor allows customized coverage of specific areas, reducing false alerts and improving detection accuracy.
Communication
Zigbee 3.0
Voltage
1.8 - 3.6V
Power Requirement

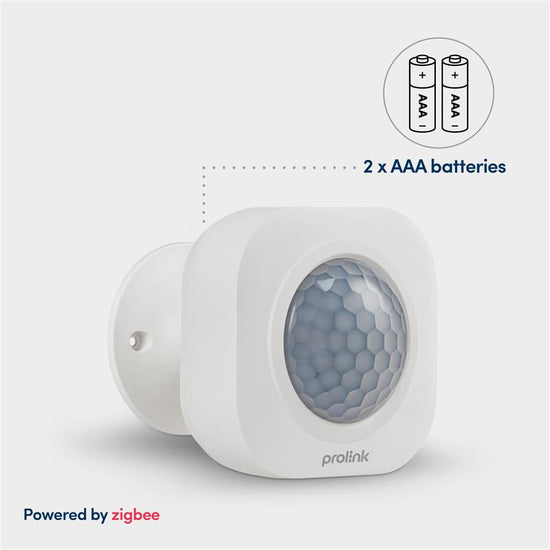

AAA x 2 Battery
Standby Current
< 18uA
Alarm Current
< 3mA
Zigbee operating channel and frequency
11 - 26 @ 2.400 - 2.483GHz
Induction Range
Up to 9 Meter , 128 degree
Wireless Standard
IEEE 802.15.4
Suggested Distance With Hub
Up to 10 Meter ( Please check signal strength in Hub UI)
Antenna Type
PCB antenna, antenna gain 1dBi
LED Indicator
White
Operating Temperature and Humidity
0°C to +50°C; 10% to 85%RH
Storage Temperature and Humidity
0°C to +70°C; 5% to 95%RH non-condensing

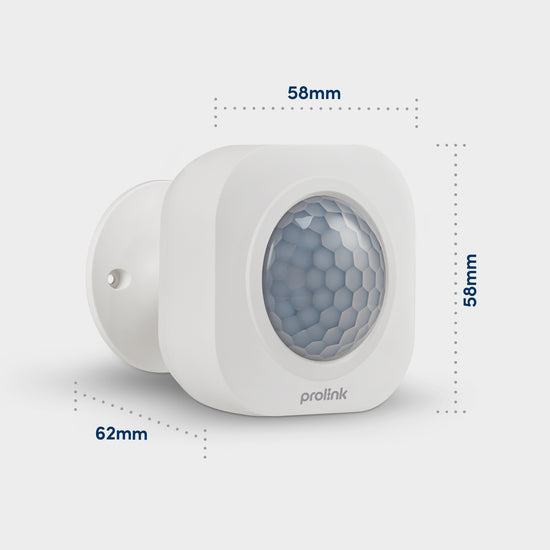

Product
58mm x 58mm x 62mm
Product
What's in the box
- 1 x Prolink DS-3308 Smart Zigbee PIR Motion Sensor
- 1 x User Guide
Pending certifications
-
Prolink will provide security updates for DS-3308 until 1st May 2028; extended support may be provided after the stated date.
