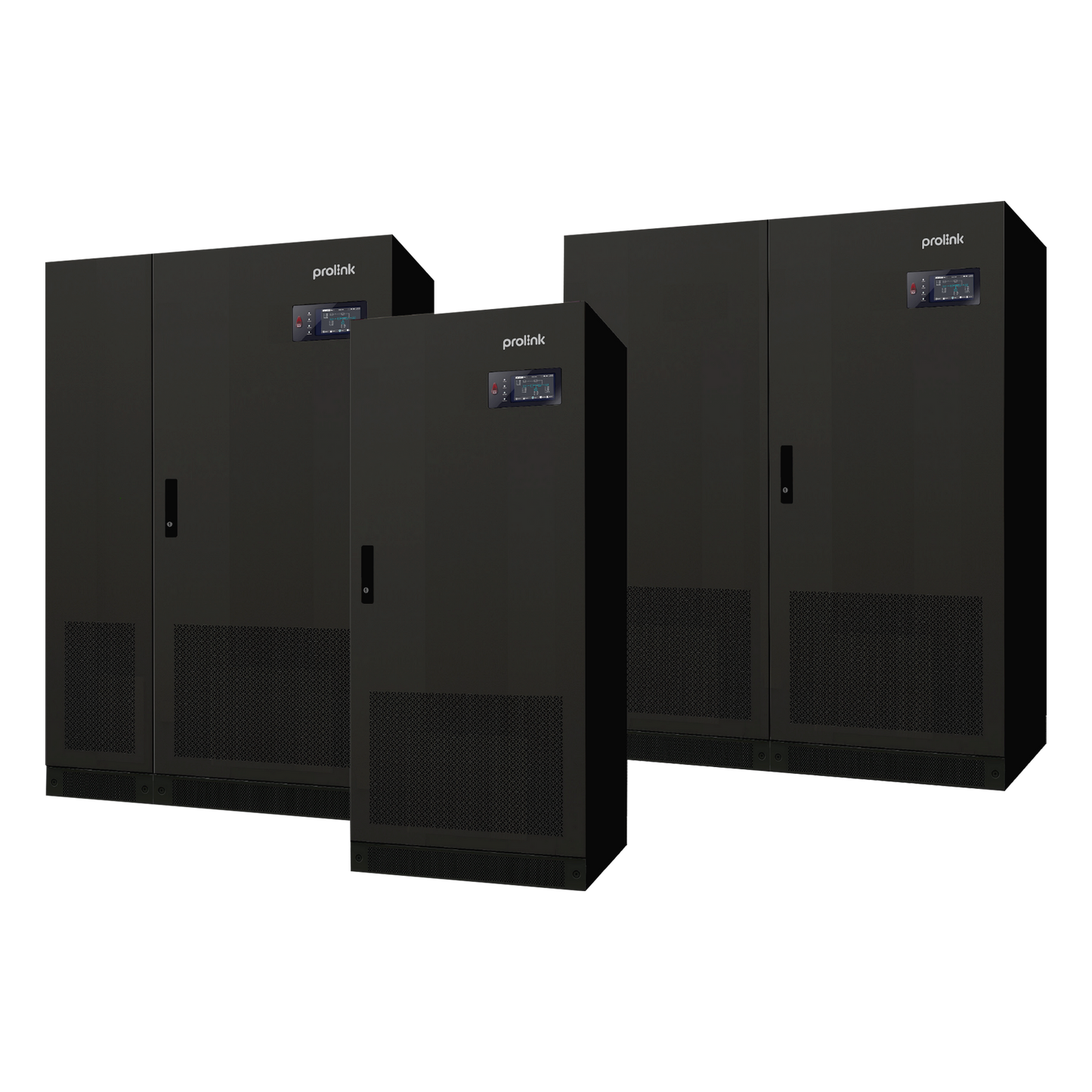

Giant Industrial Series (3P/3P) - Tower - Long Run Models - 10KVA to 200KVA
Giant Industrial Series (3P/3P) - Tower - Long Run Models - 10KVA to 200KVA
PRO63310-L-384 10KVA
Giant Industrial Series (3P/3P) - Tower - Long Run Models - 10KVA to 200KVA
Giant Industrial Series (3P/3P) - Tower - Long Run Models - 10KVA to 200KVA
Giant Industrial Series are three-phase output UPS systems which apply a true online double-conversion technology to deliver clean and high quality electrical power for electrical loads.
Kindly email sales@prolink2u.com for purchase or more information.
10KVA
20KVA
30KVA
40KVA
60KVA
80KVA
100KVA
120KVA
160KVA
200KVA
At a glance
Patented chassis structure
Temperature compensation
Standard IP31 protection
Parallel capability up to 4 units
LCD display
Parallel redundant
Output power factor 0.8
Advanced protection
Provides backfeed protection and surge protection to connected sensitive electronic equipment.
High quality key components
Using high-quality key components such as semiconductors, capacitors, fans and breakers to prolong product lifespan.
IP31 rating
Allowed for side-by-side operation against the wall as it is protected from tools and wires greater than 2.5mm.
7" coloured LCD display
Useful information such as battery health and power conditions are shown at a glance through the LCD display.
Dual-mains inputs
Allowed to connect two separate power inputs such as mains power and generator to increase operation reliability.
Graphene coating and unique ventilation design for effective heat dissipation.
Temperature compensation
Designed to prolong battery life by adjusting voltage depending on ambient temperature.
Explore other UPS series
Prolink offers standalone or modular UPS for every application size in every conceivable context –from a humble server room to the largest data center; low to medium voltage applications; or for various industries settings such as factory, office, transportation, and medical.
Find a suitable UPS for your needs at Prolink.
Capacity
PRO63310-L-384: 10KVA/8KW
PRO63320-L-384: 20KVA/16KW
PRO63330-L-384: 30KVA/24KW
PRO63340-L-384: 40KVA/32KW
PRO63360-L-384: 60KVA/48KW
PRO63380-L-384: 80KVA/64KW
PRO633100-L-384: 100KVA/80KW
PRO633120-L-384: 120KVA/96KW
PRO633160-L-384: 160KVA/128KW
PRO633200-L-384: 200KVA/160KW
UPS type
Tower
Phase
3-phase in / 3-phase out
Input nominal voltage
380VAC/400VAC/415VAC
Input voltage range
304 - 456VAC
Input frequency
50/60Hz ± 10%
Power factor
0.8
Output nominal voltage
380VAC/400VAC/415VAC
Output frequency
50/60Hz ± 1%
Overload capability
110% continuous running
125% for 10 min
>150% for 1 min
Product
Kindly email support@prolink2u.com for more information.
Product
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
