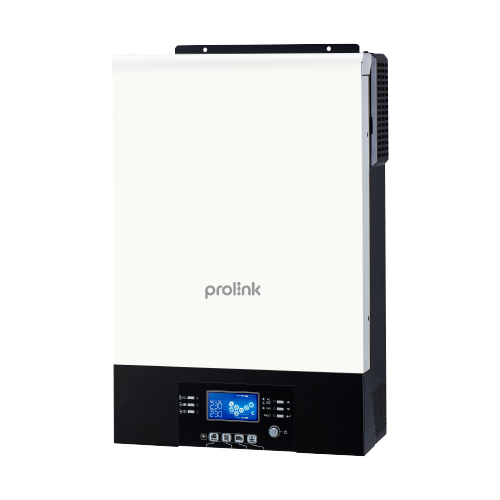

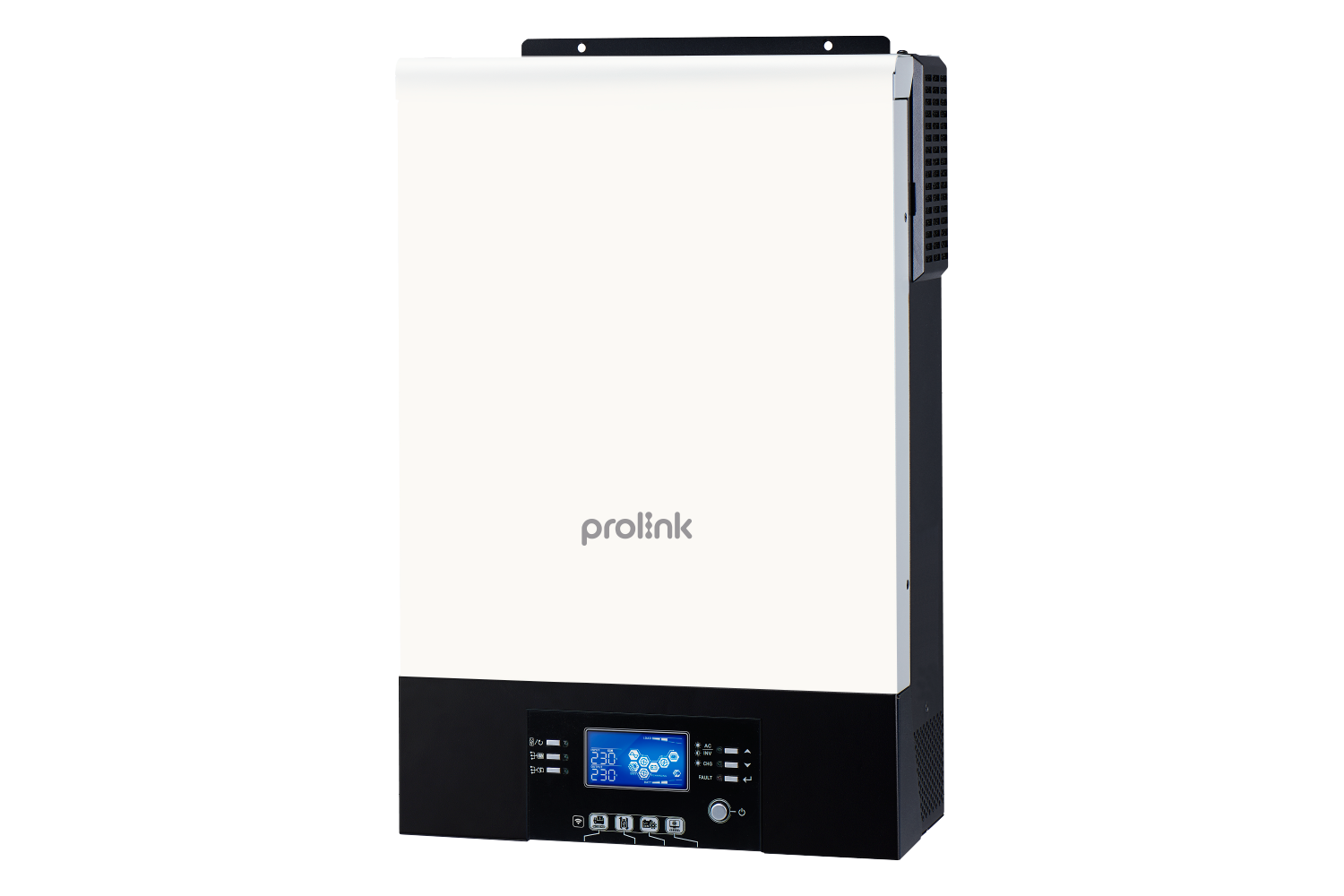

Haus Royale II Series - 5KVA and 6KVA
Haus Royale II Series - 5KVA and 6KVA
5000VA
6000VA

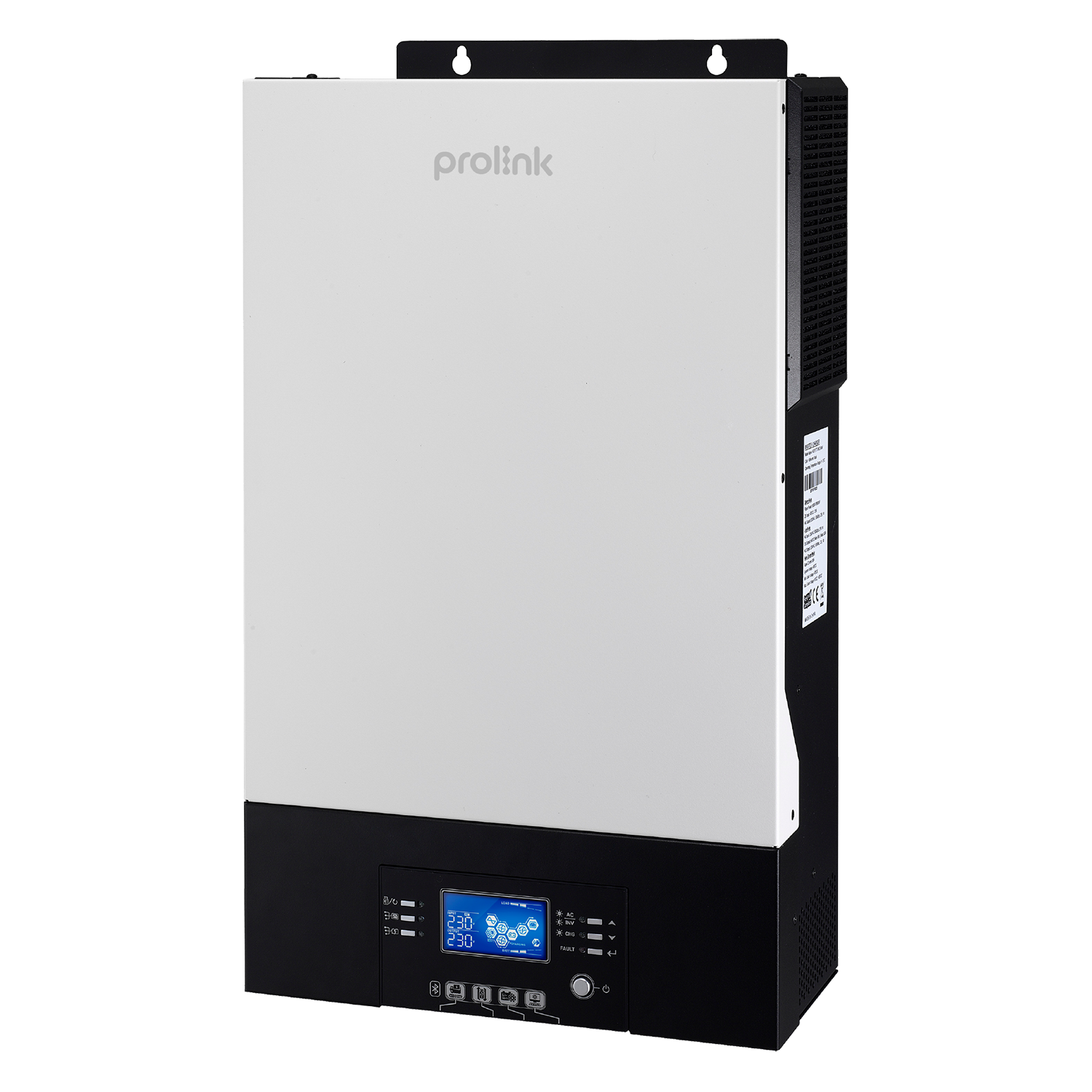

Haus Royale II 5KM-48
Haus Royale II Series - 5KVA and 6KVA
Haus Royale II Series - 5KVA and 6KVA
Haus Royale II Series is an off-grid (hybrid) inverter that converts solar energy from solar panels into pure sine wave output and provides power supply for both residential and commercial applications.
Kindly email sales@prolink2u.com for purchase or more information.
5000VA
6000VA
At a glance
Pure sine wave solar inverter
Built-in Wi-Fi for mobile monitoring
Built-in BMS communication
Battery independent design
Parallel operation up to 9 units (Optional)
Pure sine wave solar inverter
LCD display
Zero transfer time
Output power factor 1.0

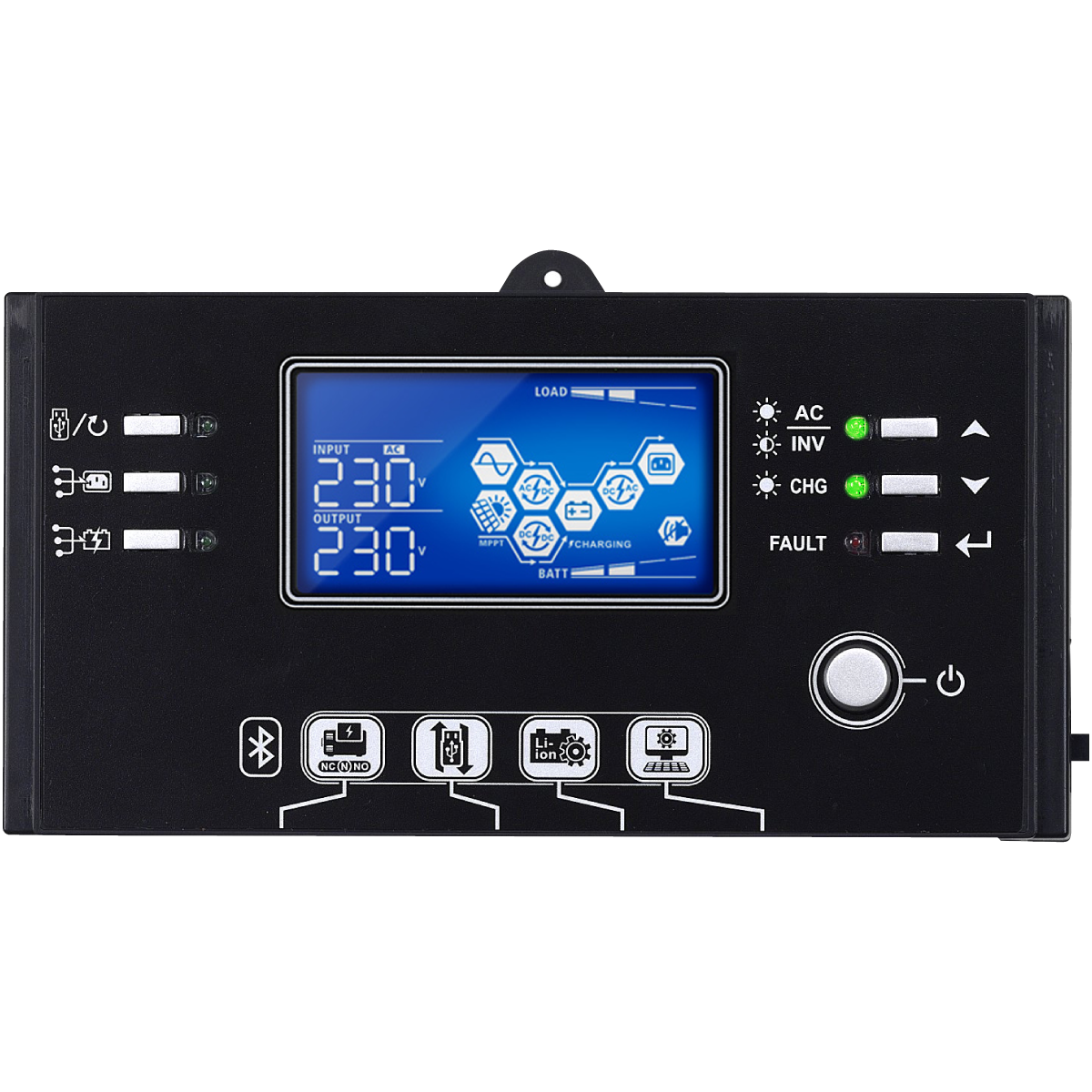

Turn the removable LCD control module into a remote control.
Pure sine wave output
Provides clean and consistent pure sine wave power that improves equipment’s performance and efficiency.
Built-in Wi-Fi for mobile monitoring
Enjoy the convenience of monitoring the inverter’s data from mobile app anytime and anywhere.
Zero transfer time
Offers instant 0ms transfer time from mains to battery mode when mains power is interrupted. This improved UPS functionality allows mission-critical loads such as ATM and medical equipment to operate continuously in case of power failures.
Prioritization and configurable of AC or solar output usage time.
-
Built-in BMS communication
Provides advanced monitoring and management to lithium-ion battery in the prevention of overcharging and protection against under-voltage and high temperatures of short circuits.
-
USB on-the-go function
Allows for updating firmware on the inverter, and downloading of history and events for analysis on the USB drive.
-
Battery independent design
Battery connection is not compulsory as power from grid or solar source can be supplied directly to the load.

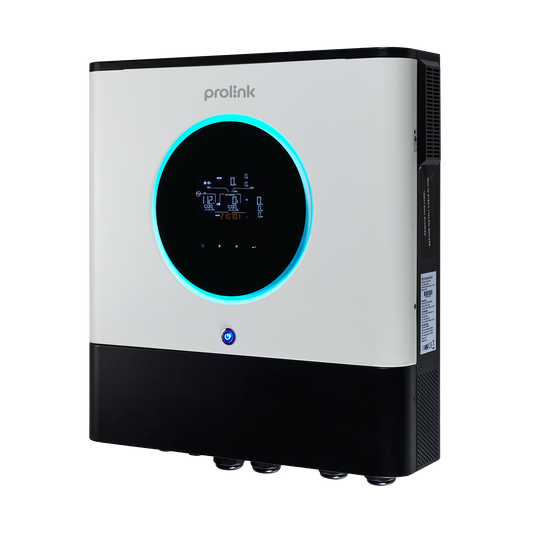

Explore other Inverter series
When utility power is unavailable, Prolink empowers you to be your own electricity provider. With Prolink's reliable off-grid inverter to convert the battery power for electrical appliances, you are equipped with a self-sufficient power supply system, independent from conventional utility grid.
Rated power
Haus Royale II 5KM-48: 5000VA/5000W
Haus Royale II 6KM-48: 6000VA/6000W
Input nominal voltage
230VAC
Input voltage range
176 - 280VAC at 100% load
110 - 280VAC at 50% load
Input frequency range
50/ 60 Hz (Auto sensing)
Output voltage
220/230/240VAC ± 3%
Output surge power
Haus Royale II 5KM-48: 10000VA for 5 sec
Haus Royale II 6KM-48: 12000VA for 5 sec
Output efficiency (peak)
Line mode: >93%
Batt. mode: >90%
Output transfer time
0ms (For line mode to battery mode)
4ms (For inverter mode to bypass mode)
Battery voltage
48VDC
Floating charge voltage for battery
54VDC
Overcharge protection for battery
66VDC
Maximum PV array power
6000W
Max. PV Array Open Circuit Voltage for solar charger
500VDC
Solar charger type
MPPT
Max. solar charge current
Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A
Max. AC charge current
Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A
Max. charge current
Haus Royale II 5KM-48: 100A
Haus Royale II 6KM-48: 120A
Product
Kindly email support@prolink2u.com for more information.
With packaging
140mm (D) x 295mm (W) x 468mm (H)
Product
Kindly email support@prolink2u.com for more information.
With packaging
12kg
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
