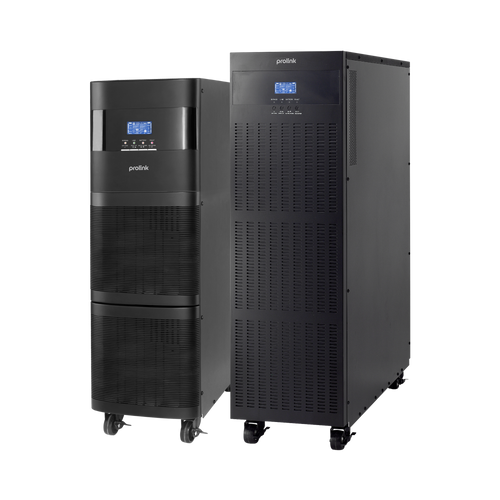

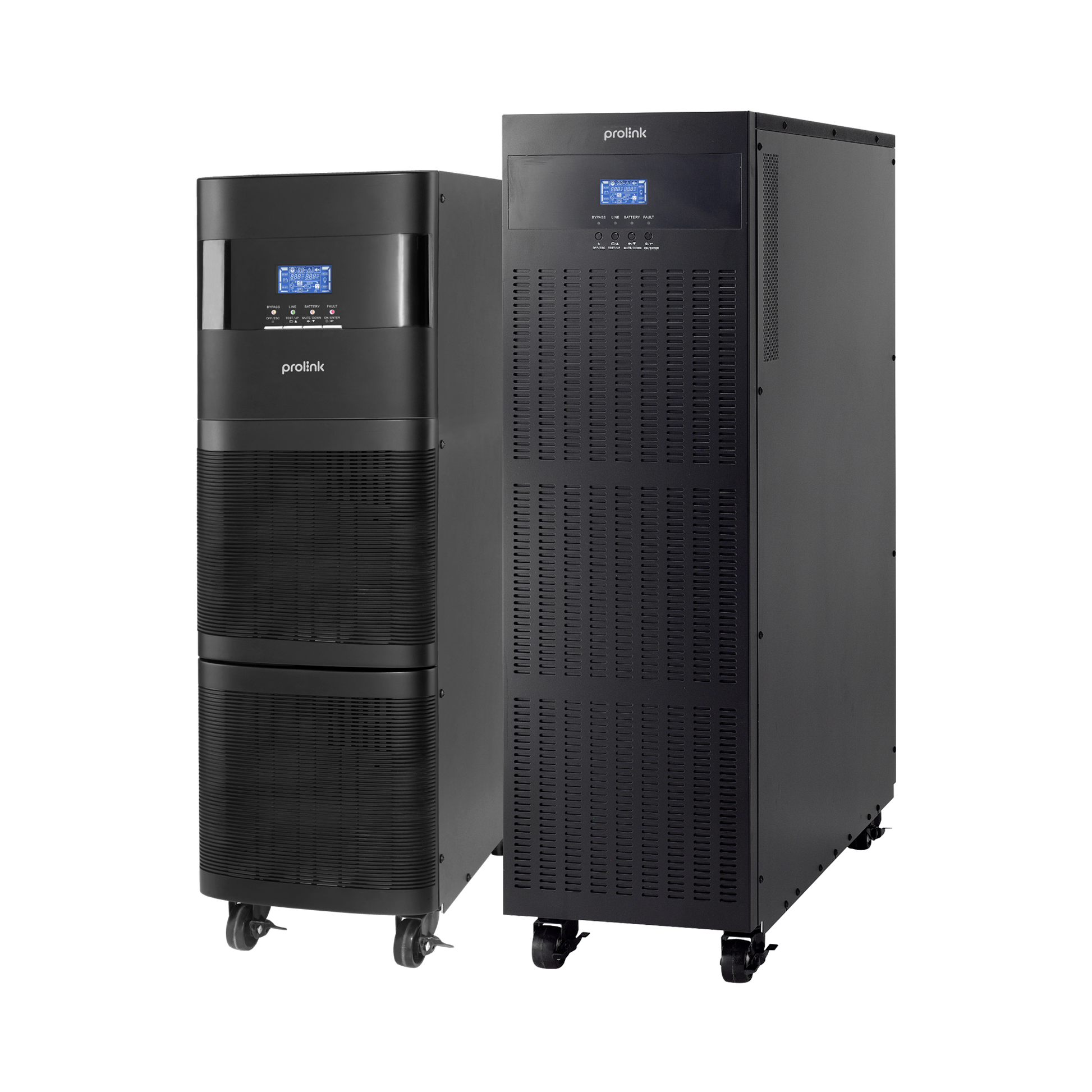

Master II+ Series (3P/3P) - Tower - Standard Models - 10KVA to 30KVA
Master II+ Series (3P/3P) - Tower - Standard Models - 10KVA to 30KVA
Master II+ (3P/3P) Series are UPS systems designed to deliver clean and high quality electrical power to fully protect wide range of critical applications such as sensitive networks, small computer centres, servers, medical equipment, telecom applications as well as industrial applications.
Kindly email sales@prolink2u.com for purchase or more information.
10000VA
15000VA
20000VA
30000VA
At a glance
True double-conversion
DSP technology
Active power factor correction in all phases
SNMP+USB+RS-232 communications
N+X parallel redundancy (optional)
LCD display
3-stage smart charging
Zero transfer time
Output power factor 0.9
True double conversion online technology
Smoothed out power fluctuations so that there will be less damage to downtime issues that could cost millions.
Eco mode
Reduces electrical losses, boosts overall UPS efficiency by 97 - 99% (as compared to standard online UPS AC mode efficiency of 90 - 97%), which can lead to a significant amount of energy cost savings.
Generator compatible
Works with generator as a power source and converts perfect power to the connected loads.
3-stage smart charging
Prevents overcharging to increase overall battery service life.
-
Emergency Power Off function
Auto disconnection of UPS from utility power to eliminate electrical shocks when fire extinguishers or sprinklers are set off in the event of emergency.
-
Adjustable battery numbers
Flexible battery configuration that adapts to different applications.
-

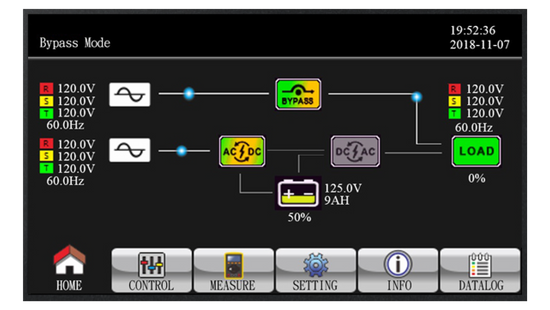

LCD display
Useful information such as battery health and power conditions are shown at a glance.
Explore other UPS series
Prolink offers standalone or modular UPS for every application size in every conceivable context –from a humble server room to the largest data center; low to medium voltage applications; or for various sectors such as factory, transportation, and medical.
Find a suitable UPS for your needs at Prolink.
Capacity
PRO83310-ES 10KVA: 10000VA / 9000W
PRO83315-ES 15KVA: 15000VA / 13500W
PRO83320-ES 20KVA: 20000VA / 18000W
PRO83330-ES 30KVA: 30000VA / 27000W
UPS type
Tower
Input phase
3-phase in / 3-phase out
Input nominal voltage
3 x 400VAC (3Ph+N)
Input voltage range
190-520VAC (3-phase) @ 50% load
305-478VAC (3-phase) @ 100% load
Input frequency
46 - 54Hz or 56 - 64Hz
Input power factor
≧ 0.99 @ 100% Load
Output nominal voltage
3 x 400 VAC (3Ph+N)
Output voltage regulation (batt. mode)
± 1%
Output frequency
Synchronized range: 46 - 54Hz or 56 - 64Hz
Battery mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz
Output current crest ratio
3:1 (max.)
Output harmonic distortion
≦2 % THD (Linear load)
≦5 % THD (Non-linear load)
Battery type and number
10000VA: 12V/9Ah x 20pcs (18 - 20pcs adjustable)
15000VA: 12V/9Ah x 20pcs (18 - 20pcs adjustable) x 2 strings
20000VA: 12V/9Ah x 20pcs (18 - 20pcs adjustable) x 2 strings
30000VA: 12V/9Ah x 20pcs (18 - 20pcs adjustable) x 3 strings
Battery recharge time
9 hours to 90% capacity
Alarm
Battery mode - Sounding every 4 seconds
Low battery - Sounding every second
Overload - Sounding twice every second
Faulty - Continuously sounding
LCD indicators
Load level, battery level, input/output voltage, discharge timer, and fault conditions
Front panel
Status LED, function keys, LCD display
Communication
Smart RS232 and USB port
Product
Kindly email support@prolink2u.com for more information.
Product
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
Quick Compare
PRO83310-ES 10KVA
Master II+ Series (3P/3P) - Tower - Standard Models - 10KVA to 30KVA
10000VA
15000VA
20000VA
30000VA
PRO83310-ERS 10KVA

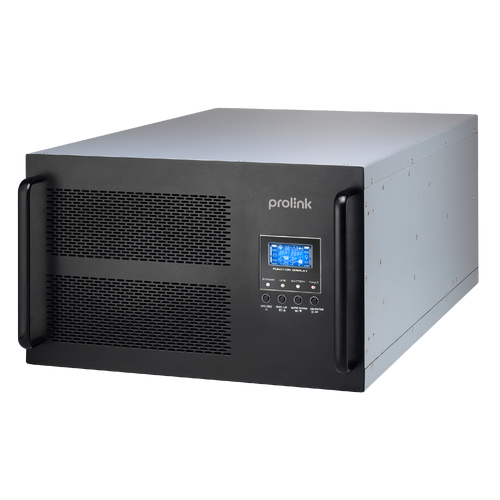

Master II+ Series (3P/3P) – Rack - Standard Models - 10KVA to 20KVA
