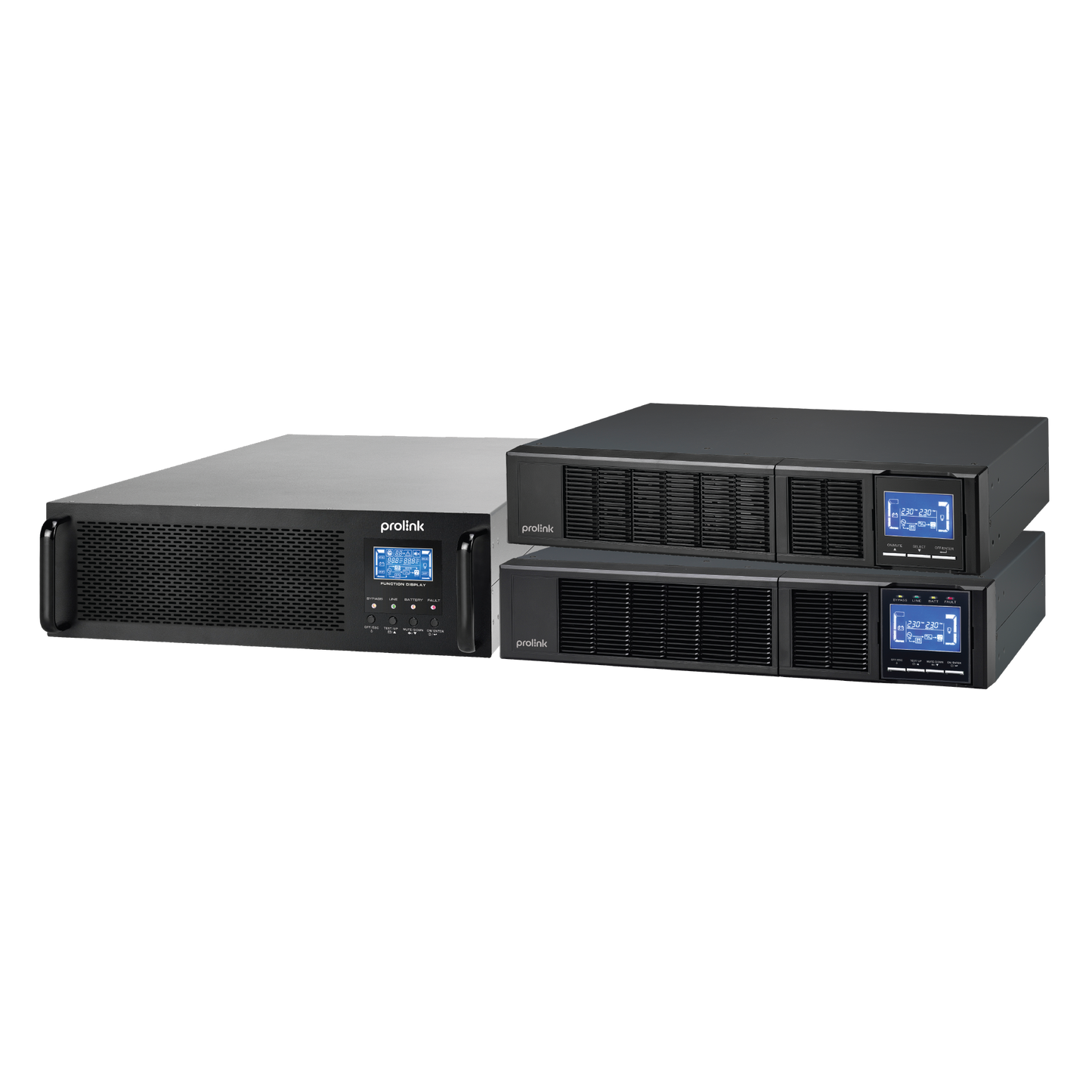

The Professional II+ Series (1P/1P) Rack/Tower is a single-phase UPS system that uses microprocessor controlled true online double conversion technology to provide protection for critical loads especially on IT applications.
1000VA
2000VA
3000VA
6000VA
10000VA
At a glance
True double-conversion
Microprocessor control
Input power factor correction
Smart SNMP
Converter mode (optional)
LCD display
Wide input voltage
Zero transfer time
Rack tower design
Output power factor 0.9
True double conversion online technology
Smoothed out power fluctuations so that there will be less damage to downtime issues that could cost millions.
Generator compatible
Works with generator as a power source and converts perfect power to the connected loads.
LCD display
Useful information such as battery health and power conditions are shown at a glance through the LCD display.
Emergency Power Off function
Safety feature that will immediately disconnect the UPS loads from utility power in the event of an emergency to ensure there’s no risk of electrical shock when fire extinguishers or sprinklers are set off inside the room.
(Optional for 1-3kVA, built-in for 6-10kVA)
Explore other UPS series
Prolink offers standalone or modular UPS for every application size in every conceivable context –from a humble server room to the largest data center; low to medium voltage applications; or for various sectors such as factory, transportation, and medical.
Find a suitable UPS for your needs at Prolink.
Capacity
PRO901-ERL 1KVA: 1000VA / 900W
PRO902-ERL 2KVA: 2000VA / 1800W
PRO903-ERL 3KVA: 3000VA / 2700W
PRO906-ERL 6KVA: 6000VA / 5400W
PRO910-ERL 10KVA: 10000VA / 9000W
UPS type
Tower
Input phase
Single phase with ground
Input nominal voltage
For 1000VA, 2000VA, and 3000VA: 200/208/220/230/240VAC
For 6000VA and 10000VA: 208/220/230/240VAC
Input voltage range
For 1000VA, 2000VA, and 3000VA:
110-300VAC (Based on load at 50%)
160-280VAC (Based on load at 100%)
For 6000VA and 10000VA:
110-300VAC (Based on load at 50%)
176-300VAC (Based on load at 100%)
Input frequency
For 1000VA, 2000VA, and 3000VA:
40 - 70Hz
For 6000VA and 10000VA:
46-54Hz or 56-64Hz
Input power factor
≧ 0.99 @ nominal voltage (100% load)
Output voltage regulation
±1%
Output frequency
For 1000VA, 2000VA, and 3000VA:
Synchronized range: 47 - 53Hz or 57 - 63Hz
Battery mode: 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
For 6000VA and 10000VA:
Synchronized range: 46 - 54Hz or 56 - 64Hz
Battery mode: 50Hz or 60Hz ± 0.1 Hz
Output current crest ratio
3:1
Output harmonic distortion
For 1000VA, 2000VA, and 3000VA:
≦ 3% THD (Linear load)
≦ 6% THD (Non-linear load)
For 6000VA and 10000VA:
≦ 3% THD (Linear load)
≦ 5% THD (Non-linear load)
Battery type and number
Depending on the capacity of external batteries:
1000VA - 3pcs
2000VA - 6pcs
3000VA - 6pcs
Depending on applications:
6000VA & 10000VA -16 to 20pcs (Adjustable)
Battery recharge time
1000VA, 2000VA, and 3000VA - 4 hours to 90% capacity
6000VA and 10000VA - 9 hours to 90% capacity
Alarm
Battery mode - Sounding every 4 seconds
Low battery - Sounding every second
Overload - Sounding twice every second
Faulty - Continuously sounding
LCD indicators
Load level, battery level, AC mode, battery mode, bypass mode, and fault indicators
Front panel
Status LED, function keys, LCD display
Communication
Smart RS232 and USB port
