Titan Series (3P/3P) - Tower - 90KW to 300KW
Titan Series (3P/3P) - Tower - 90KW to 300KW
Titan 30U-90-30HV
Titan Series (3P/3P) - Tower - 90KW to 300KW
Titan Series (3P/3P) - Tower - 90KW to 300KW

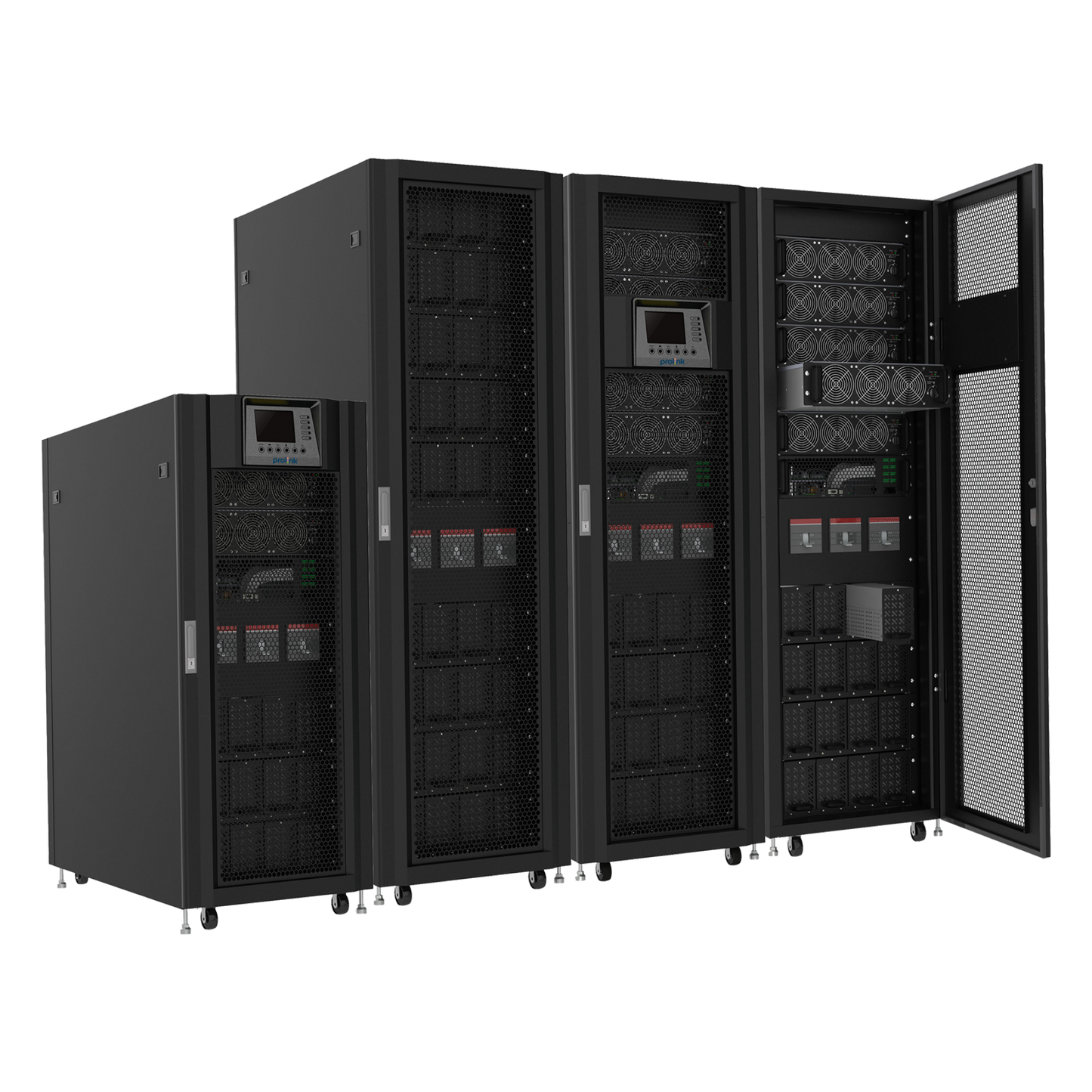

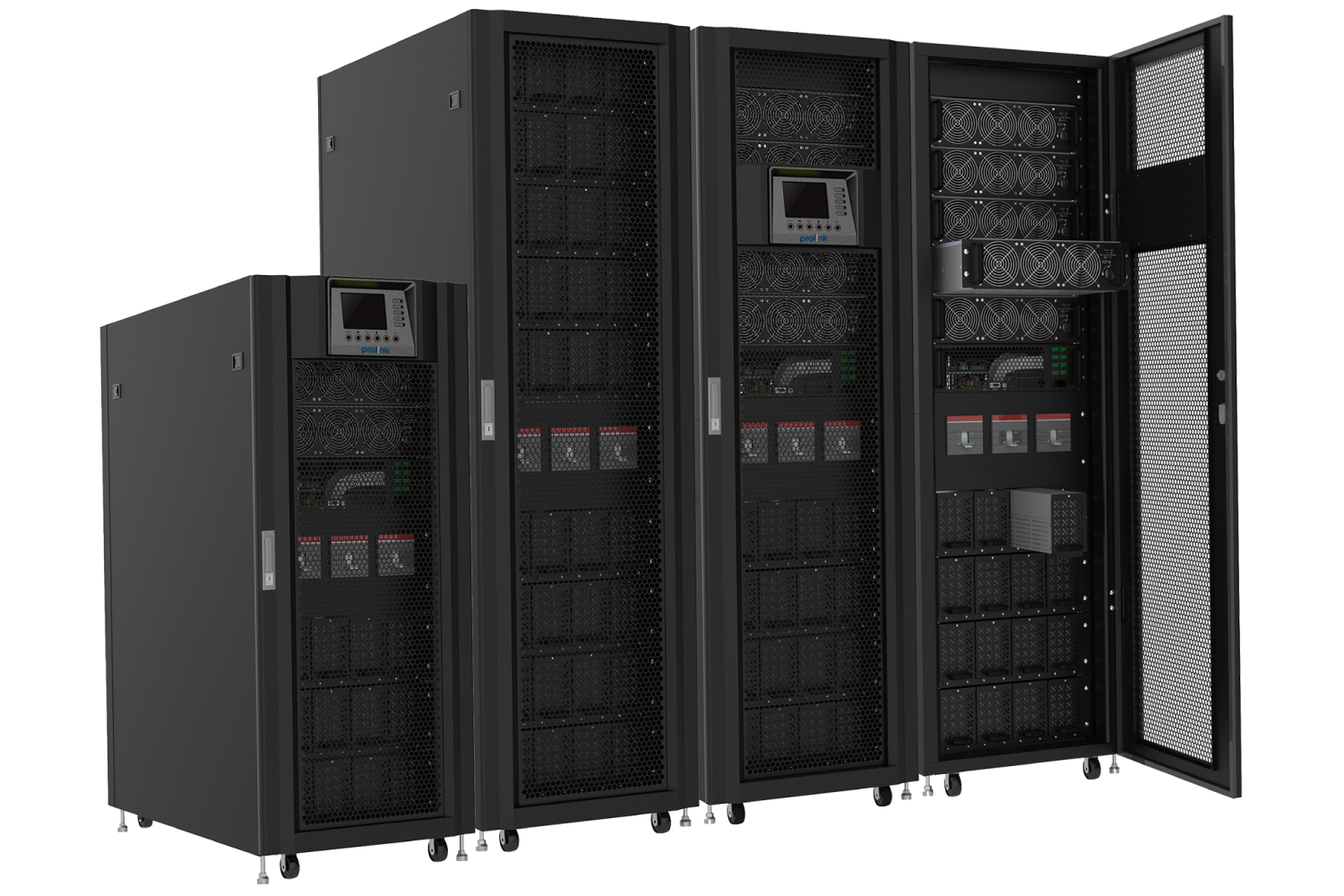

The Titan PPM Series is a modular three-phase input / three-phase output online double conversion UPS that takes scalability to a whole new level.
Kindly email sales@prolink2u.com for purchase or more information.
90KW
120KW
120KW/ 80KW
180KW/ 120KW
200KW
210KW
300KW
At a glance
N+1 and N+X parallel redundancy
Adjustable charging current
High overload capability
Flexible battery configuration
Ease of installation and maintenance
online double conversion technology
High Scalability
adjustable charging current
Unity output power factor 1.0
Flexible Battery configuration adapts different applications.
Online double conversion UPS solution for high-efficiency rating at 100% load.
5.7” LCD display
Enhances the readability of identified and advanced configurations. Optional 10” touch LCD panel is available.
Ease of installation and maintenance
Built-in maintenance bypass feature to deliver continuous power to the critical load during maintenance. Comes with a front-access concept to facilitate easy installation.
Adjustable charging current
Provides maximum 6A or 8A charging current for every power module to suit requirements.
Explore other UPS series
Prolink offers standalone or modular UPS for every application size in every conceivable context –from a humble server room to the largest data center; low to medium voltage applications; or for various industries settings such as factory, office, transportation, and medical.
Find a suitable UPS for your needs at Prolink.
Capacity
Titan 30U-90-30HV: 90KW
Titan 42U-120-30HV:120KW
Titan 30U-120-30HV/ Titan 30U-80-20HV: 120KW/ 80KW
Titan 30U-180-30HV/ Titan 30U-120-20HV: 180KW/ 120KW
Titan 42U-200-20HV: 200KW
Titan 42U-210-30HV: 210KW
Titan 42U-300-30HV: 300KW
UPS type
Tower
Input phase
3-phase in / 3-phase out
Input nominal voltage
3 x 380VAC/400VAC/415VAC (3Ph+N)
Input voltage range
305 - 478VAC at 100% load
208 - 304VAC at <70% load
Input frequency
50/60Hz (Auto Sensing)
Power factor
1.0
Output nominal voltage
3 x 380VAC/400VAC/415VAC (3Ph+N)
Output voltage regulation (batt. mode)
≦ ±1% Typical (balanced load)
≦ ±2% Typical (unbalanced load)
Output frequency
50/60Hz
Output harmonic distortion
≦ 2% THD (Linear load)
≦ 4% THD (Non-linear load)
Battery nominal voltage
±216V (12V x 36 pcs)
Battery voltage range (min. to max.)
±192V (12V x 32 pcs) to ±240V (12V x 40 pcs)
Front panel
Status LED, function keys, LCD display
Communication
Smart RS232, USB port and Emergency Power Off (EPO)
Product
Kindly email support@prolink2u.com for more information.
Product
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
Kindly email support@prolink2u.com for more information.
